TPS53219A Series

3-V to 28-V, 20-A, synchronous D-CAP buck controller with Eco Mode

Catalog

3-V to 28-V, 20-A, synchronous D-CAP buck controller with Eco Mode

Part	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Frequency - Switching	Outputs and Type	Outputs and Type	Utilized IC / Part	Regulator Topology	Supplied Contents	Main Purpose	Voltage - Output	Output Configuration	Package / Case	Mounting Type	Supplier Device Package	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Output Phases	Control Features	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Output Type	Function	Topology	Duty Cycle (Max) [Max]

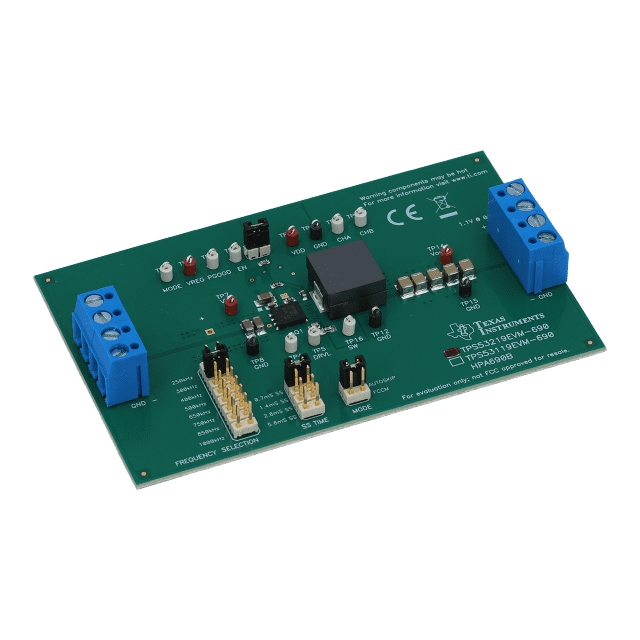

Texas Instruments TPS53219EVM-690	Fully Populated	14 V	8 V	4 A	300 kHz	Non-Isolated	1	TPS53219	Buck	Board(s)	DC/DC Step Down	1.1 V
Texas Instruments TPS53219RGTR					500 kHz								Positive	16-VFQFN Exposed Pad	Surface Mount	16-VQFN (3x3)	1	85 °C	-40 °C	1	Enable Frequency Control Power Good Soft Start	25 V	4.5 V	Transistor Driver	Step-Down	Buck
Texas Instruments TPS53219ARGTR					500 kHz								Positive	16-VFQFN Exposed Pad	Surface Mount	16-VQFN (3x3)	1	85 °C	-40 °C	1	Enable Frequency Control Power Good Soft Start	25 V	4.5 V	Transistor Driver	Step-Down	Buck	90 %
Texas Instruments TPS53219RGTT					500 kHz								Positive	16-VFQFN Exposed Pad	Surface Mount	16-VQFN (3x3)	1	85 °C	-40 °C	1	Enable Frequency Control Power Good Soft Start	25 V	4.5 V	Transistor Driver	Step-Down	Buck

Catalog

3-V to 28-V, 20-A, synchronous D-CAP buck controller with Eco Mode

Key Features

• Conversion input voltage range: 3 V to 28 VVDD input voltage range: 4.5 V to 25 VOutput voltage range: 0.6 V to 5.5 VWide output load range: 0 A to > 20 ABuilt-in 0.6-V (±0.8%) referenceBuilt-in LDO linear voltage regulatorAuto-skip Eco-Mode™ for light-load efficiencyD-CAP™ mode with 100-ns load-step responseAdaptive ON-time control architecture with 8 selectable frequency settings4700ppm/°C RDS(on)current sensing0.7-ms, 1.4-ms, 2.8-ms and 5.6-ms selectable internal voltage servo soft startPre-charged start-up capabilityBuilt-in output dischargeOpen-drain power-good outputIntegrated boost switchBuilt-In OVP/UVP/OCPThermal shutdown (non-latch)3-mm × 3-mm QFN, 16-Pin (RGT) packageConversion input voltage range: 3 V to 28 VVDD input voltage range: 4.5 V to 25 VOutput voltage range: 0.6 V to 5.5 VWide output load range: 0 A to > 20 ABuilt-in 0.6-V (±0.8%) referenceBuilt-in LDO linear voltage regulatorAuto-skip Eco-Mode™ for light-load efficiencyD-CAP™ mode with 100-ns load-step responseAdaptive ON-time control architecture with 8 selectable frequency settings4700ppm/°C RDS(on)current sensing0.7-ms, 1.4-ms, 2.8-ms and 5.6-ms selectable internal voltage servo soft startPre-charged start-up capabilityBuilt-in output dischargeOpen-drain power-good outputIntegrated boost switchBuilt-In OVP/UVP/OCPThermal shutdown (non-latch)3-mm × 3-mm QFN, 16-Pin (RGT) package

Description

The TPS53219A device is a small-sized single buck controller with adaptive ON-time D-CAP mode control. The device is suitable for low output voltage, high current, PC system power rail and similar point-of-load (POL) power supplies in digital consumer products. The small package and minimal pin-count save space on the PCB, while the dedicated EN pin and pre-set frequency selections simplify the power supply design. The skip mode at light load conditions, strong gate drivers, and low-side FET RDS(on)current sensing supports low-loss and high efficiency, over a broad load range. The conversion input voltage (high-side FET drain voltage) range is between 4.5 V and 25 V, and the output voltage range is between 0.6 V and 5.5 V. The TPS53219A is available in a 16-pin, QFN package specified from –40°C to +85°C. The TPS53219A device is a small-sized single buck controller with adaptive ON-time D-CAP mode control. The device is suitable for low output voltage, high current, PC system power rail and similar point-of-load (POL) power supplies in digital consumer products. The small package and minimal pin-count save space on the PCB, while the dedicated EN pin and pre-set frequency selections simplify the power supply design. The skip mode at light load conditions, strong gate drivers, and low-side FET RDS(on)current sensing supports low-loss and high efficiency, over a broad load range. The conversion input voltage (high-side FET drain voltage) range is between 4.5 V and 25 V, and the output voltage range is between 0.6 V and 5.5 V. The TPS53219A is available in a 16-pin, QFN package specified from –40°C to +85°C.
