1719 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

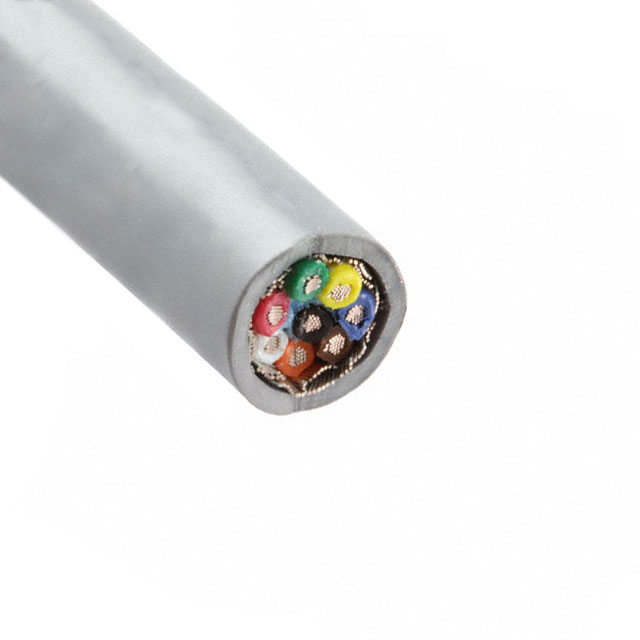

CABLE 8CON 20AWG SLATE SHLD 500'
| Part | Shield Coverage | Shield Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Material | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Cable Type | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length | Length | Number of Conductors [custom] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Polyethylene (PE) | 0.035 in | 0.889 mm | Braid | Poly-Vinyl Chloride (PVC) | Copper Tinned | -20 ░C | 60 °C | Slate | Multi-Conductor | 600 V | 26 | 34 AWG | 8.31 mm | 0.327 " | 20 AWG | 152.4 m | 500 ft | 8 | Communication Control |
ALPHA WIRE | 85 % | Copper Tinned | Polyethylene (PE) | 0.035 in | 0.889 mm | Braid | Poly-Vinyl Chloride (PVC) | Copper Tinned | -20 ░C | 60 °C | Slate | Multi-Conductor | 600 V | 26 | 34 AWG | 8.31 mm | 0.327 " | 20 AWG | 304.8 m | 1000 ft | 8 | Communication Control |
