EFB Series

Catalog

DC FANS DC TUBEAXIAL FAN, 40X20MM, 5VDC, BALL BEARING, LEAD WIRES

Part	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Material - Blade	Lifetime @ Temp.	Noise	Fan Type	Weight	Weight	Power (Watts)	Voltage - Rated	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Bearing Type	Termination	Air Flow	Air Flow	RPM	Approval Agency	Features	Size / Dimension	Size / Dimension [y]	Weight [custom]	Weight [custom]
Delta Electronics EFB0405MD	5.5 V	4.5 V	150 mA	Plastic	Plastic	70000 Hrs	24 dB	Tubeaxial	33.11 g	0.073 lb	0.75 W	5 V	20 mm	70 °C	-10 °C	40 mm	40 mm	54.3 Pa	0.218 in H2O	Ball	2 Wire Leads	0.202 mł/min	7.2 CFM	6300 RPM	CE CSA UL VDE
Delta Electronics EFB0612MA-R00	13.8 VDC	7 V		Plastic	Plastic	70000 Hrs	29 dB(A)	Tubeaxial	28.12 g	0.062 lb	960 mW	12 VDC	10 mm	70 °C	-10 °C	60 mm	60 mm	23.4 Pa	0.094 in H2O	Ball	3 Wire Leads	0.434 m³/min	15.5 CFM	3600 RPM	CE CSA UL VDE	Locked Rotor Sensor
Delta Electronics EFB1548VHG-R00							60 dB(A)	Tubeaxial	861.8 g	1.9 lbs	23.52 W	48 VDC	50.8 mm	70 °C	-10 °C	172 mm		233.4 Pa	0.937 in H2O	Ball	3 Wire Leads	8.46 m³/min	302.3 CFM	4000 RPM	CE CSA UL VDE	Locked Rotor Sensor	Rectangular/Rounded	150 mm
Delta Electronics EFB0812LB-F00							30 dB	Tubeaxial	67.13 g	0.148 lb	1.2 W	12 VDC	15 mm			80 mm	80 mm	16.7 Pa	0.067 in H2O	Ball	3 Wire Leads	0.829 m³/min	29.6 CFM	2300 RPM	CE CSA UL VDE	Speed Sensor (Tach)
Delta Electronics EFB0405HHA-F00	5.5 V	4.5 V	190 mA	Plastic	Plastic	70000 Hrs	33 dB(A)	Tubeaxial				5 V	10 mm	70 °C	-10 °C	40 mm	40 mm	43.3 Pa	0.174 in H2O	Ball	3 Wire Leads	0.227 m³/min	8.1 CFM	7000 RPM	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)			14.51 g	0.032 lb

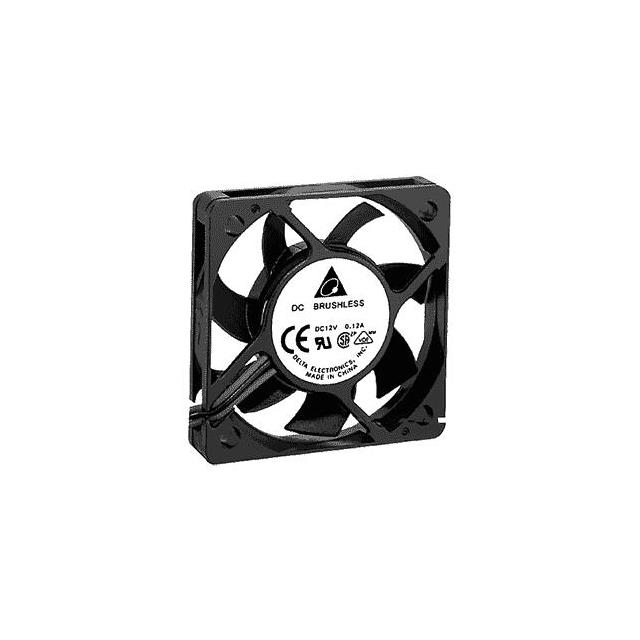

Delta Electronics EFB0512HA-F00	13.8 VDC	7 V	100 mA	Plastic	Plastic	70000 Hrs	30 dB	Tubeaxial	25.85 g	0.057 lb	1.2 W	12 VDC	10 mm	70 °C	-10 °C	50 mm	50 mm	41.6 Pa	0.167 in H2O	Ball	3 Wire Leads	0.319 mł/min	11.4 CFM	5500 RPM	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0824MB-F00							33 dB(A)	Tubeaxial	67.13 g	0.148 lb	2.64 W	24 VDC	15 mm			80 mm	80 mm	24.6 Pa	0.099 in H2O	Ball	3 Wire Leads	1.01 m³/min	36 CFM	2800 RPM	CE CSA UL VDE	Speed Sensor (Tach)
Delta Electronics EFB0424VHD-CP0							37.3 dB(A)	Tubeaxial			1.44 W	24 VDC	20 mm	70 °C	-10 °C	40 mm	40 mm	91.7 Pa	0.368 in H2O	Ball	4 Wire Leads	0.263 m³/min	9.4 CFM	9000 RPM	CE cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics EFB0512VHBBBN	16 V	9 V		Plastic	Plastic		35 dB	Tubeaxial	35.38 g	0.078 lb		13.5 VDC	15 mm	105 ░C	-40 C	50 mm	50 mm	55.3 Pa	0.222 in H2O	Ball	3 Wire Leads	0.367 mł/min	13.1 CFM	7600 RPM		Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0424VHD-F00	27.6 VDC	14	0.09 A	Plastic	Plastic	70000 Hrs	32.5 dB	Tubeaxial	33.11 g	0.073 lb	2.16 W	24 VDC	20 mm	70 °C	-10 °C	40 mm	40 mm	103.6 Pa	0.416 in H2O	Ball	3 Wire Leads	0.283 m³/min	10.1 CFM	9000 RPM	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)
