PAT-30 Series

Catalog

FIBER OPTIC CBL LC-LC DUPLEX 30M

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Return Loss	Color - Cable	Color - Connectors	Type	1st Connector	Fiber Type	Cable Diameter [diameter]	Cable Diameter [diameter]	Cable Type	Features	Length - Overall	Length - Overall	2nd Connector	Return Loss [Min]	Return Loss [Max]	Ratings
FiberSource, Inc PAT-30-JH-B-20-D-9	85 °C	-40 C	0.3 dB	65 dB	Yellow	Blue	Duplex Singlemode	LC Duplex	9/125	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	Low Smoke	30 m	98.4 '	LC Duplex
FiberSource, Inc PAT-30-JH-B-20-S-9	85 °C	-40 C	0.2 dB		Yellow		Simplex Singlemode	LC/APC	9/125	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	Low Smoke	30 m	98.4 '	LC/UPC	55 dB	65 dB	LSZH
FiberSource, Inc PAT-30-HC-B-20-D-9	85 °C	-40 C	0.3 dB	55 dB	Yellow	Blue	Duplex Singlemode	LC/UPC	9/125	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	Low Smoke	30 m	98.4 '	SC/UPC			LSZH

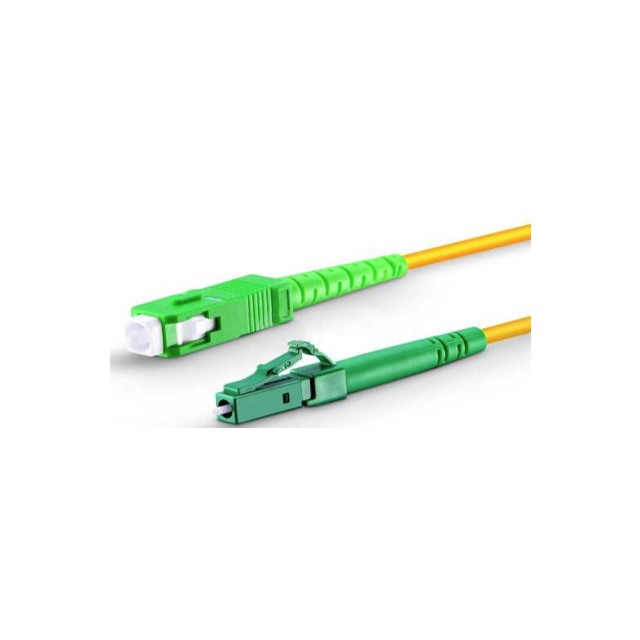

FiberSource, Inc PAT-30-JD-B-20-S-9	85 °C	-40 C	0.2 dB		Yellow		Simplex Singlemode	LC/APC	9/125	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	Low Smoke	30 m	98.4 '	SC/APC	55 dB	65 dB	LSZH

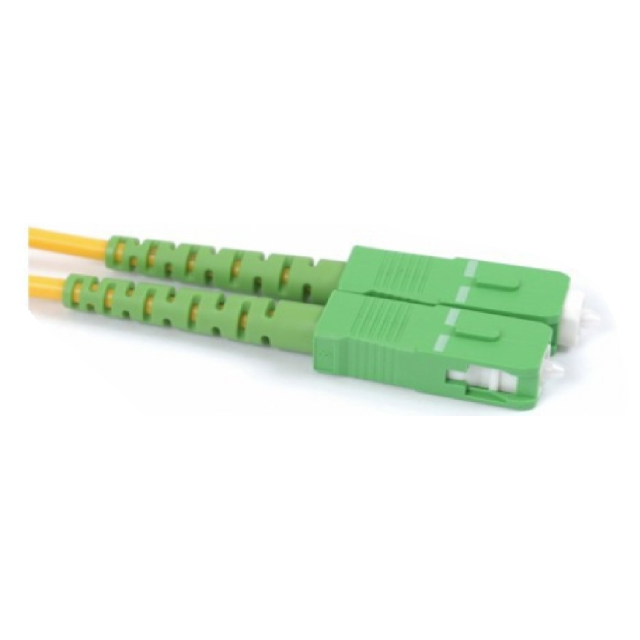

FiberSource, Inc PAT-30-DD-B-20-D-9	85 °C	-40 C	0.3 dB	65 dB	Yellow	Blue	Duplex Singlemode	SC/APC	9/125	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	Low Smoke	30 m	98.4 '	SC/APC			LSZH

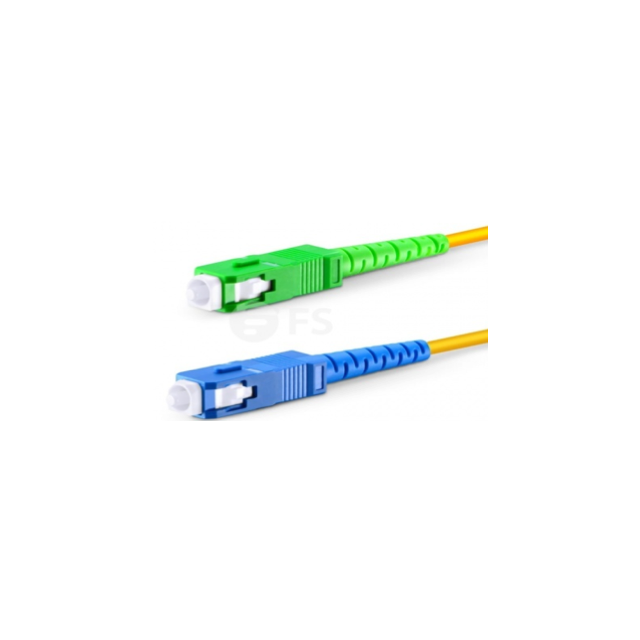

FiberSource, Inc PAT-30-DC-B-20-S-9	85 °C	-40 C	0.2 dB		Yellow		Simplex Singlemode	SC/APC	9/125	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	Low Smoke	30 m	98.4 '	SC/UPC	55 dB	65 dB	LSZH
FiberSource, Inc PAT-30-NL-F-20-D-A	85 °C	-40 C				Blue	Duplex Multimode OM3	LC Duplex	50/125	0.08 "	2 mm			30 m	98.4 '	SC Duplex
FiberSource, Inc PAT-30-NN-F-20-D-A	85 °C	-40 C				Blue	Duplex Multimode OM3	LC Duplex	50/125	0.08 "	2 mm			30 m	98.4 '	LC Duplex
FiberSource, Inc PAT-30-HH-B-20-D-9	85 °C	-40 C	0.3 dB	55 dB	Yellow	Blue	Duplex Singlemode	LC Duplex	9/125	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	Low Smoke	30 m	98.4 '	LC Duplex			LSZH
FiberSource, Inc PAT-30-DC-B-20-D-9	85 °C	-40 C	0.3 dB	65 dB	Yellow	Blue	Duplex Singlemode	SC/APC	9/125	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	Low Smoke	30 m	98.4 '	SC/UPC			LSZH
