SXV Series

Catalog

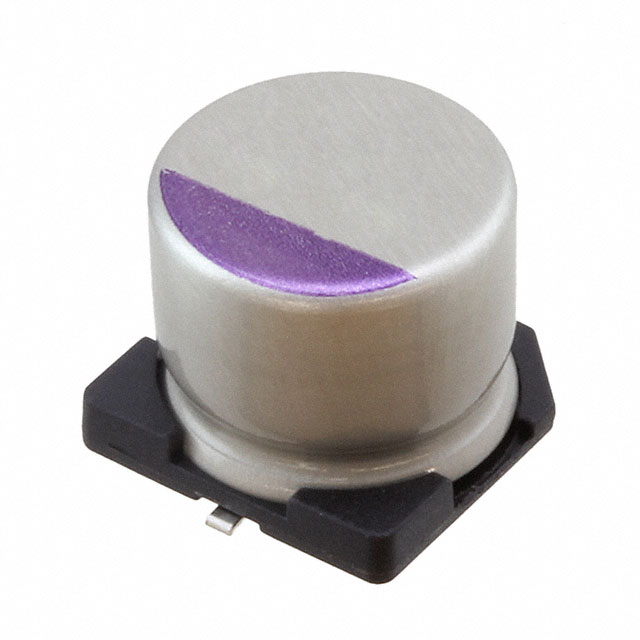

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 27 ΜF, 100 V, RADIAL CAN - SMD, 0.03 OHM

Part	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	Capacitance	Package / Case	Mounting Type	Voltage - Rated	Ripple Current @ Low Frequency	Applications	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Height - Seated (Max)
Panasonic Electronic Components 100SXV27M	Polymer	0.394 in	10 mm	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	27 µF	Radial Can - SMD	Surface Mount	100 V	150 mA	General Purpose	3000 mA	30 mOhms	0.5 in	12.7 mm	-55 C	125 °C	1000 Hrs
Panasonic Electronic Components 80SXV56M	Polymer	0.394 in	10 mm	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	56 µF	Radial Can - SMD	Surface Mount	80 V	155 mA	General Purpose	3.1 A	28 mOhm	0.5 in	12.7 mm	-55 C	125 °C	1000 Hrs
Panasonic Electronic Components 63SXV68MX	Polymer	0.315 in	8 mm	0.327 in	0.327 in	8.3 mm	8.3 mm	20 %	68 µF	Radial Can - SMD	Surface Mount	63 V	147.5 mA	General Purpose	2.95 A	25 mOhm	0.472 in		-55 C	125 °C	1000 Hrs	12 mm
Panasonic Electronic Components 100SXV27MX	Polymer	0.315 in	8 mm	0.327 in	0.327 in	8.3 mm	8.3 mm	20 %	27 µF	Radial Can - SMD	Surface Mount	100 V	117.5 mA	General Purpose	2.35 A	40 mOhm	0.472 in		-55 C	125 °C	1000 Hrs	12 mm
