4820P Series

Catalog

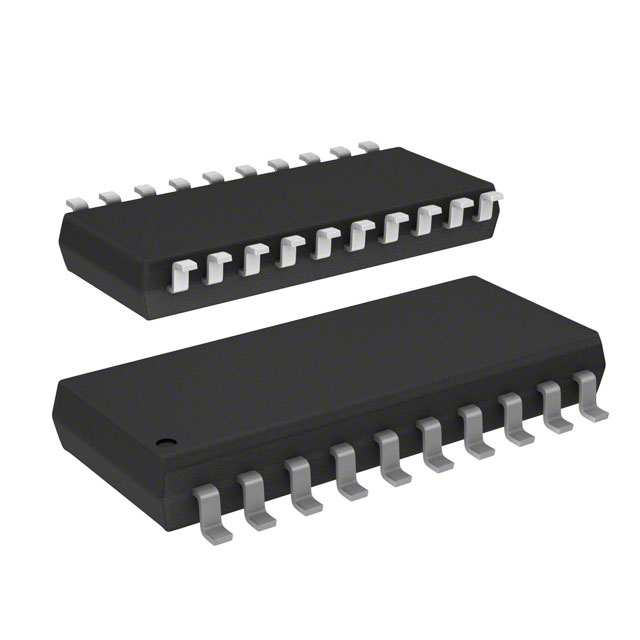

RES ARRAY 19 RES 2.7K OHM 20SOIC

...

Part	Circuit Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Package / Case	Tolerance	Grade	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Temperature Coefficient	Mounting Type	Number of Resistors	Power Per Element	Resistance (Ohms) [custom]	Resistance (Ohms)	Resistance (Ohms)	Tolerance
Bourns Inc. 4820P-2-272	Bussed	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	19	80 mW	2.7 k
Bourns Inc. 4820P-2-223F	Bussed	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	19	80 mW		22k
Bourns Inc. 4820P-T02-103LF	Bussed	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	19	80 mW		10k
Bourns Inc. 4820P-T01-221	Isolated	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	10	160 mW	220 Ohms
Bourns Inc. 4820P-T01-152LF	Isolated	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	10	160 mW	1.5 k
Bourns Inc. 4820P-1-121	Isolated	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	10	160 mW			120 Ohms
Bourns Inc. 4820P-T01-203	Isolated	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	10	160 mW			20 kOhms
Bourns Inc. 4820P-1-330	Isolated	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)		Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	250 ppm/°C	Surface Mount	10	160 mW			33 Ohms	±1Ohm
Bourns Inc. 4820P-T01-202	Isolated	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	10	160 mW			2 kOhms
Bourns Inc. 4820P-T02-223	Bussed	5.59 mm	0.22 in	0.54 in	13.72 mm	20-SOM	20-SOIC (0.220" 5.59mm Width)	2 %	Automotive	2.4 mm	0.094 in	-55 C	125 °C	AEC-Q200	100 ppm/°C	Surface Mount	19	80 mW		22k
