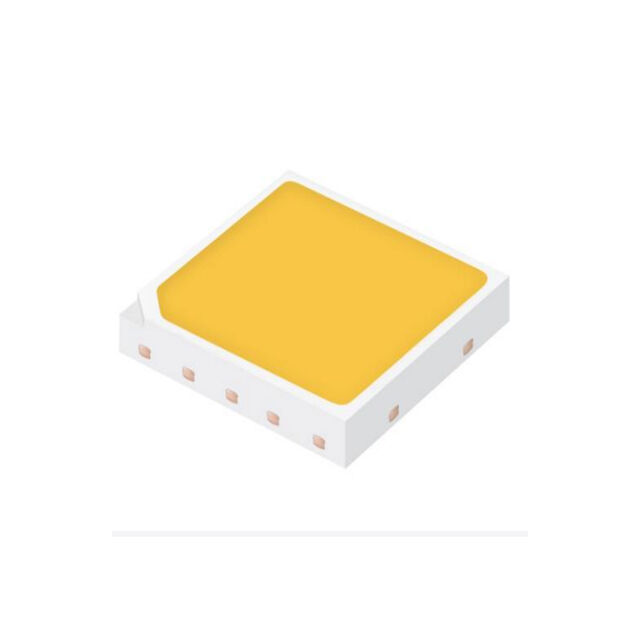

SPHWH2L5N Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED LH502D WARM WHT 3000K 2020

Part	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Viewing Angle	Package / Case	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max)	CCT (K)	CCT (K)	Current - Max [Max]	Mounting Type	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test
Samsung Semiconductor, Inc. SPHWH2L5N605YEV3A3	3 °C/W	6.1 V	159 lm/W	80	Warm White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm	3-Step MacAdam Ellipse	3000 K	1 A	Surface Mount	660 lm	580 lm
Samsung Semiconductor, Inc. SPHWH2L5N603YEP5A3	3 °C/W	6.1 V	179 lm/W	70	Cool White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm		6500 K	1 A	Surface Mount	740 lm	660 lm	700 lm
Samsung Semiconductor, Inc. SPHWH2L5N607YEU5A3	3 °C/W	6.1 V	136 lm/W	90	Warm White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm			1 A	Surface Mount	570 lm	490 lm	530 lm
Samsung Semiconductor, Inc. SPHWH2L5N604YEV5A3	3 °C/W	6.1 V	169 lm/W	75	Warm White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm	5-Step MacAdam Ellipse	3000 K	1 A	Surface Mount	700 lm	620 lm
Samsung Semiconductor, Inc. SPHWH2L5N605YEU3A3	3 °C/W	6.1 V	164 lm/W	80	Warm White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm	3-Step MacAdam Ellipse	3500 K	1 A	Surface Mount			640 lm
Samsung Semiconductor, Inc. SPHWH2L5N603YEU5A3	3 °C/W	6.1 V	182 lm/W	70	Warm White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm			1 A	Surface Mount	750 lm	670 lm	710 lm
Samsung Semiconductor, Inc. SPHWH2L5N607YEV5A3	3 °C/W	6.1 V	133 lm/W	90	Warm White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm	5-Step MacAdam Ellipse	3000 K	1 A	Surface Mount	560 lm	480 lm	520 lm
Samsung Semiconductor, Inc. SPHWH2L5N604YEU5A3	3 °C/W	6.1 V	174 lm/W	75	Warm White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm			1 A	Surface Mount			680 lm
Samsung Semiconductor, Inc. SPHWH2L5N607YEY3A3	3 °C/W	6.1 V	115 lm/W	90	Warm White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm	3-Step MacAdam Ellipse	2200 K	1 A	Surface Mount	490 lm	410 lm
Samsung Semiconductor, Inc. SPHWH2L5N605YER5A3	3 °C/W	6.1 V	169 lm/W	80	Cool White	0.197 in	0.197 "	5 mm	5 mm	2020	120 °	2020 (5050 Metric)	640 mA	0.031 in	0.8 mm	5-Step MacAdam Ellipse	5000 K	1 A	Surface Mount	700 lm	620 lm
