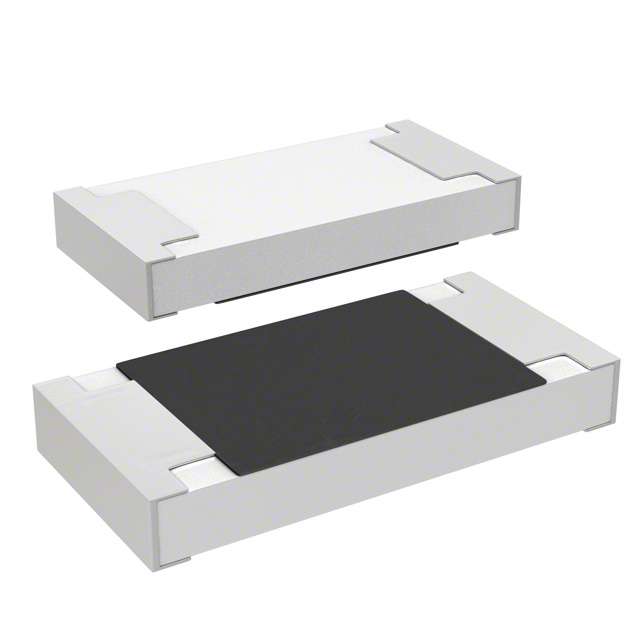

CRL1206 Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES 0.16 OHM 5% 1/2W 1206
| Part | Supplier Device Package | Resistance | Power (Watts) | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Number of Terminations [custom] | Temperature Coefficient | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Composition | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1206 | 160 mOhms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 5 % |
Bourns Inc. | 1206 | 62 mOhms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 5 % |
Bourns Inc. | 1206 | 270 mOhms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 1 % |
Bourns Inc. | 1206 | 200 mOhms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 5 % |
Bourns Inc. | 1206 | 110 mOhms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 1 % |
Bourns Inc. | 1206 | 0.3 Ohms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 1 % |
Bourns Inc. | 1206 | 200 mOhms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 1 % |
Bourns Inc. | 1206 | 7.5 Ohms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 5 % |
Bourns Inc. | 1206 | 1.1 Ohms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 1 % |
Bourns Inc. | 1206 | 1.6 Ohms | 0.5 W | 0.5 W | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2 | 200 ppm/°C | 0.7 mm | 0.028 " | Thick Film | 1206 (3216 Metric) | 155 C | -55 C | 5 % |
