R20366 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

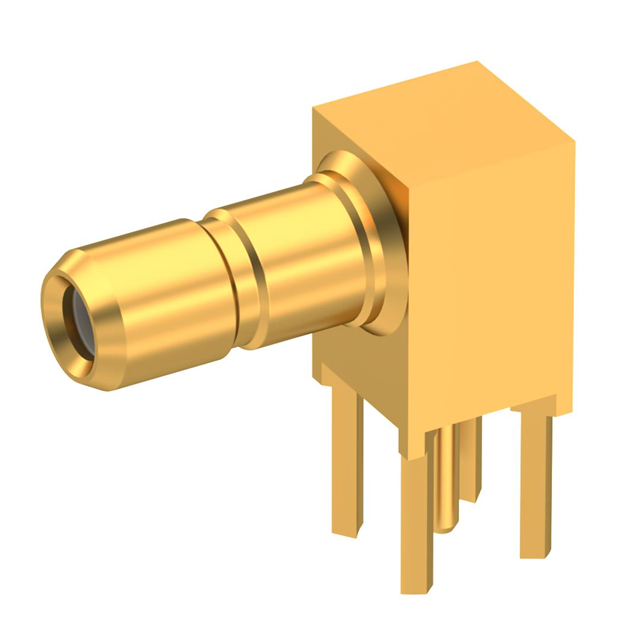

SSMB / RIGHT ANGLE JACK RECEPTAC
| Part | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Material | Mating Cycles | Body Finish | Dielectric Material | Fastening Type | Connector Style | Impedance | Mounting Type | Shield Termination | Contact Termination | Housing Color | Number of Ports | Center Contact Material | Connector Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | 175 VDC | Brass | 500 | Gold | Polytetrafluoroethylene (PTFE) | Snap-On | SSMB | 50 Ohms | Right Angle Through Hole | Solder | Solder | Gold | 1 | Beryllium Copper | Jack Male Pin | 4 GHz |
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | 250 V | Brass | 500 | Gold | Polytetrafluoroethylene (PTFE) | Snap-On | SSMB | 50 Ohms | Right Angle Through Hole | Solder | Solder | Gold | 1 | Beryllium Copper | Female Socket Plug | 4 GHz |
