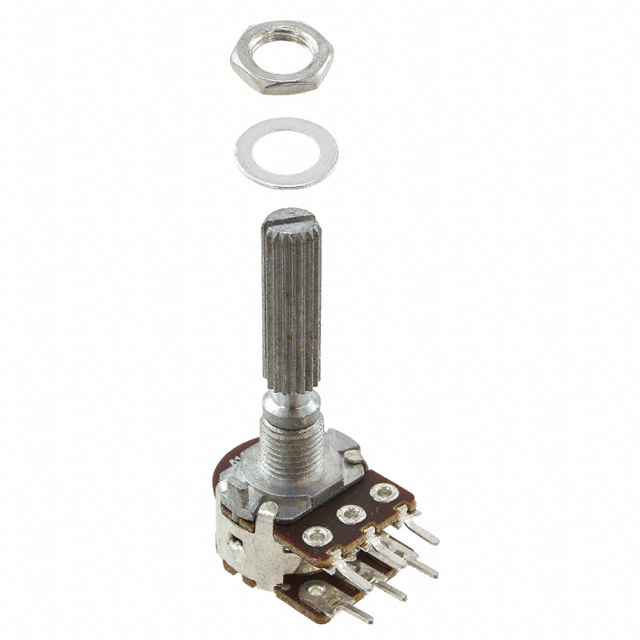

PDB182 Series

Catalog

POT 50K OHM 0.06W CARBON LOG

Part	Size - Body [diameter]	Size - Body [diameter]	Number of Turns	Actuator Type	Actuator Length [x]	Actuator Length [x]	Power (Watts)	Resistive Material	Rotation	Taper	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Bushing Thread	Mounting Type	Adjustment Type	Built in Switch	Resistance (Ohms) [custom]	Tolerance	Termination Style	Resistance (Ohms)	Resistance (Ohms)	Power (Watts)
Bourns Inc. PDB182-K430K-503A	17 mm	0.669 "	1	Knurled and Slotted	30 mm	1.181 in	0.06 W	Carbon	300 ░	Logarithmic	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	Side Adjustment	None	50 kOhms	20 %	PC Pins
Bourns Inc. PDB182-K425K-103A	17 mm	0.669 "	1	Knurled and Slotted	25 mm	0.984 in	0.06 W	Carbon	300 ░	Logarithmic	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	Side Adjustment	None		20 %	PC Pins	10k

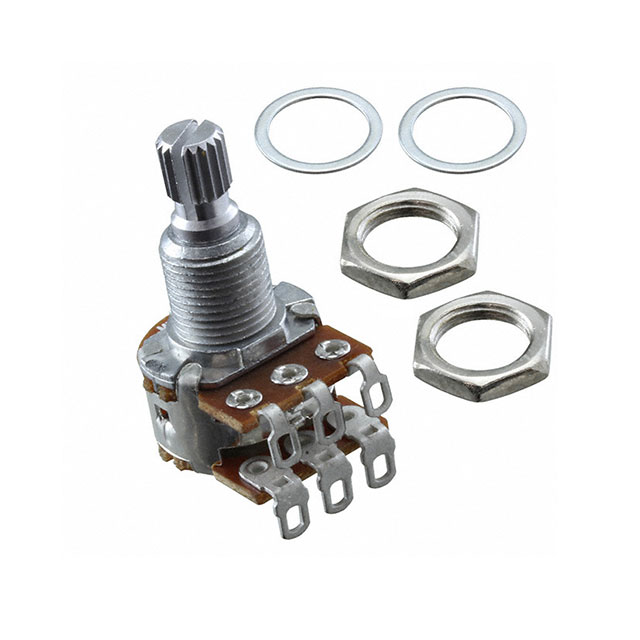

Bourns Inc. PDB182-GTRB2-254MN	17 mm	0.669 "	1	Round	19 mm	0.748 in	0.06 W	Carbon	300 ░	Linear	2	6 mm	0.236 in	3/8-32	Panel Mount	User Defined	Detent		20 %	Solder Lug		250000 Ohms
Bourns Inc. PDB182-K420K-504A			1	Knurled and Slotted	20 mm	0.787 in	0.06 W	Carbon	300 ░	Logarithmic	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	Side Adjustment	None		20 %	PC Pins		500 kOhms
Bourns Inc. PDB182-K230K-104A	17 mm	0.669 "	1	Knurled and Slotted	30 mm	1.181 in	0.06 W	Carbon	300 ░	Logarithmic	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	Side Adjustment	Detent		20 %	PC Pins	100k

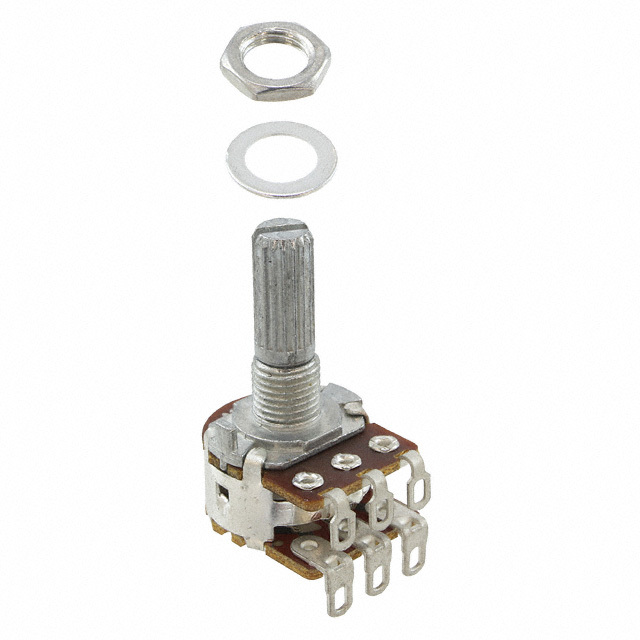

Bourns Inc. PDB182-E420K-103A	17 mm	0.669 "	1	Knurled and Slotted	20 mm	0.787 in	0.06 W	Carbon	300 ░	Logarithmic	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	User Defined	None		20 %	Solder Lug	10k
Bourns Inc. PDB182-K215K-503A1	17 mm	0.669 "	1	Knurled and Slotted	15 mm	0.591 in	0.06 W	Carbon	300 ░	Logarithmic	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	Side Adjustment	Detent	50 kOhms	20 %	PC Pins
Bourns Inc. PDB182-D415F-203A	17 mm	0.669 "	1	Flatted	15 mm	0.591 in	0.06 W	Carbon	300 ░	Logarithmic	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	Side Adjustment	None		20 %	PC Pins		20 kOhms
Bourns Inc. PDB182-K420K-103A	17 mm	0.669 "	1	Knurled and Slotted	20 mm	0.787 in	0.06 W	Carbon	300 ░	Logarithmic	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	Side Adjustment	None		20 %	PC Pins	10k
Bourns Inc. PDB182-K215K-503B1			1	Knurled and Slotted	15 mm	0.591 in	0.125 W	Carbon	300 ░	Linear	2	6 mm	0.236 in	M7 x 0.75	Panel Mount	Side Adjustment	Detent	50 kOhms	20 %	PC Pins			0.125 W
