207534 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

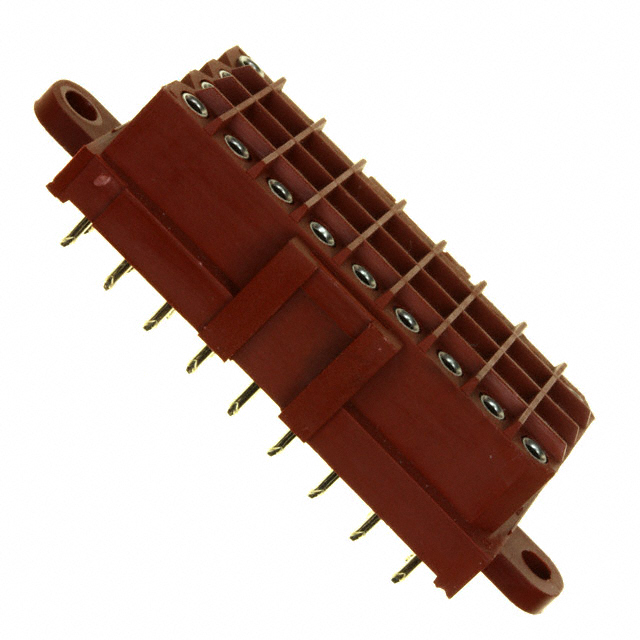

CONN HDR 36P 0.197 TIN-LEAD PCB
| Part | Contact Shape | Number of Positions | Contact Material | Contact Finish - Post | Insulation Color | Insulation Material | Features | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Current Rating (Amps) | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Style | Voltage Rating | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Circular | 36 | Phosphor Bronze | Tin | Black Red | Nylon Polyamide (PA) | Mounting Flange | Solder | 130 °C | -55 °C | Tin-Lead | 7.5 A | Female Socket | 150 Áin | 3.81 Ám | 0.565 in | 14.35 mm | UL94 V-0 | 5 mm | 0.197 " | Header | 150 Áin | 3.81 Ám | All | Board to Cable/Wire | 600 V | Through Hole | 5 mm | 0.197 in | 0.181 in | 4.6 mm | Latch Holder |
