30-601 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH PUSH BUTTON N.O. SPST ROUND BUTTON 1A MOMENTARY PANEL MOUNT WIRE LEAD
| Part | Electrical Life | Current Rating (Amps) | Actuator Marking | Mounting Type | Switch Function | Circuit | Panel Cutout Dimensions [diameter] | Type | Voltage Rating - DC | Termination Style | Actuator Type | Features | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 1000000 Cycles | 150 mA | No Marking | Panel Mount Rear | Off-Mom | SPST-NO | 6.75 mm | Standard | 5 V | Wire Leads | Plunger Round | Epoxy Sealed Terminals | Black | 85 °C | -40 C | ||

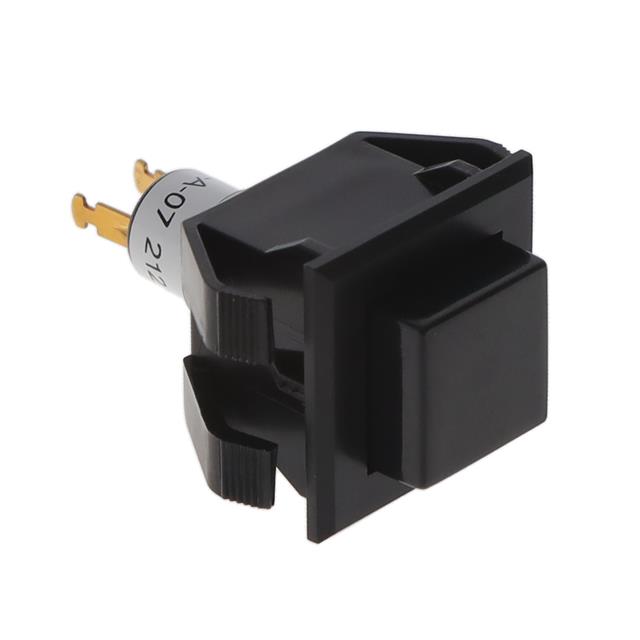

 Grayhill Inc. | 1000000 Cycles | 150 mA | No Marking | Panel Mount Snap-In | Off-Mom | SPST-NO | Standard | 5 V | Solder Lug | Button Square | Black | 85 °C | -40 C | 19.05 mm | 19.05 mm | ||

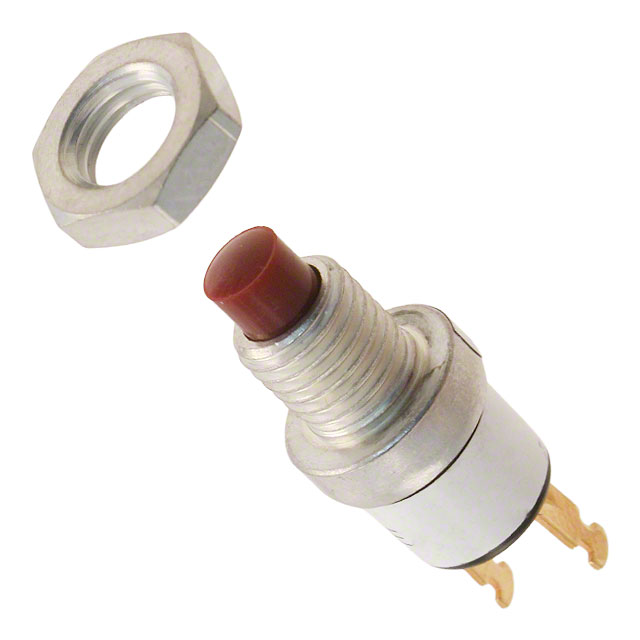

 Grayhill Inc. | 1000000 Cycles | 150 mA | No Marking | Panel Mount Rear | Off-Mom | SPST-NO | 6.75 mm | Standard | 5 V | Solder Lug | Plunger Round | Red | 85 °C | -40 C | |||
Grayhill Inc. | 1000000 Cycles | 150 mA | No Marking | Panel Mount Snap-In | Off-Mom | SPST-NO | Standard | 5 V | Solder Lug | Button Square | White | 85 °C | -40 C | 19.05 mm | 19.05 mm |
