YB25WS Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSH DPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Switch Function | Voltage Rating - AC | Illumination Type, Color | Actuator Marking | Circuit | Panel Cutout Dimensions [diameter] | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features | Voltage Rating - DC | Illumination Voltage (Nominal) | Termination Style | Color - Actuator/Cap | Mounting Type | Ingress Protection | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 28 V | Amber LED | No Marking | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 0.4 VA | Voltage Reduction Lighting | 28 V | 5 VDC | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard |
NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 125 V | Amber LED | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 3 A | 30 V | 2 VDC | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard | ||

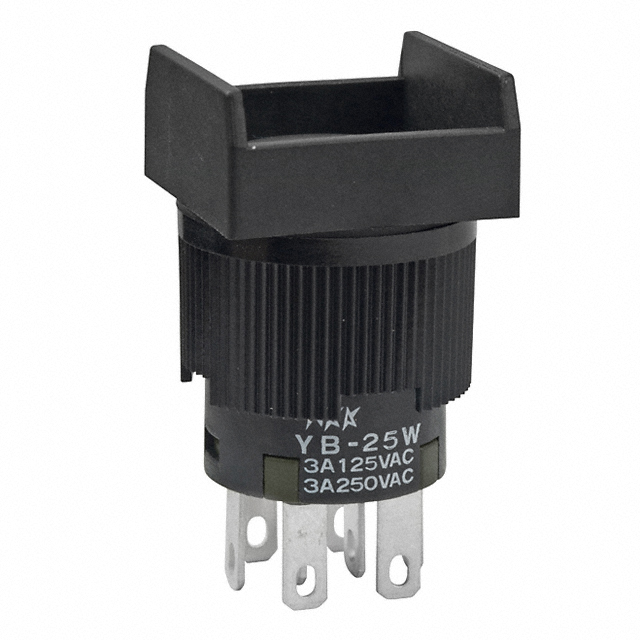

 NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 125 V | No Marking | DPDT | 16 mm | Plunger for Cap | 70 °C | -25 °C | 3 A | Voltage Reduction Lighting | 30 V | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | IP65 - Dust Tight Water Resistant | Standard | |||
NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 125 V | LED Red | No Marking | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 3 A | Voltage Reduction Lighting | 30 V | 24 V | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard |
 NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 125 V | Blue LED | No Marking | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 3 A | Voltage Reduction Lighting | 30 V | 3.6 VDC | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard |
NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 125 V | Green LED | No Marking | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 3 A | Voltage Reduction Lighting | 30 V | 24 V | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard |
NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 125 V | Amber LED | No Marking | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 3 A | Voltage Reduction Lighting | 30 V | 24 V | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard |
NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 125 V | Green LED | No Marking | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 3 A | Voltage Reduction Lighting | 30 V | 5 VDC | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard |
NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 125 V | Amber LED | No Marking | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 3 A | Voltage Reduction Lighting | 30 V | 12 VDC | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard |

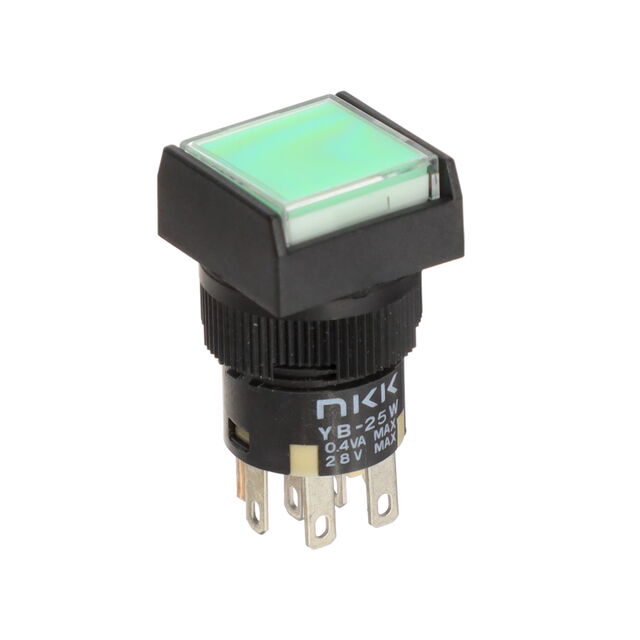

 NKK Switches | 1000000 Cycles | 100000 Cycles | On-Mom | 28 V | Green LED | No Marking | DPDT | 16 mm | Button Square | 50 °C | -25 °C | 0.4 VA | Voltage Reduction Lighting | 28 V | 12 VDC | Solder Quick Connect - 0.110" (2.8mm) | Clear | Panel Mount Front | IP65 - Dust Tight Water Resistant | Illuminated Standard |
