G861121 Series

Catalog

PROTECT HEADER 2.0MM PITCH R/A,2

Part	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Features	Insulation Color	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Material	Number of Positions Loaded	Style	Fastening Type	Contact Shape	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height	Shrouding	Number of Positions	Contact Type	Connector Type

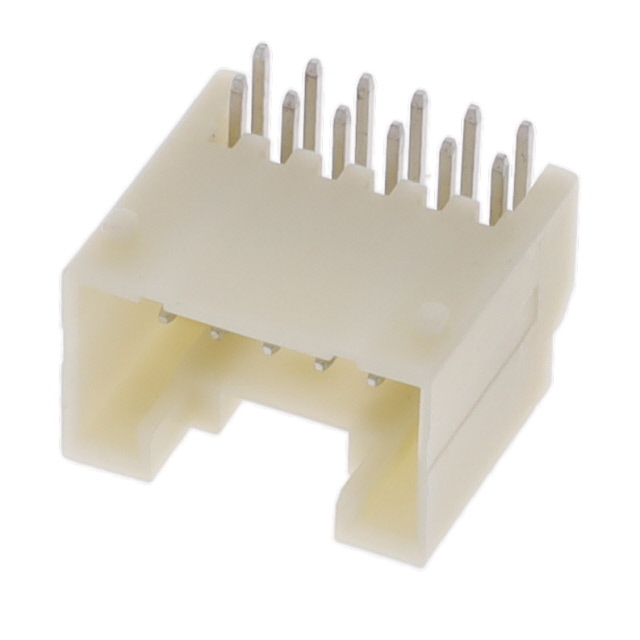

Amphenol ICC (Commercial Products) G86112121S2HR	0.335 in	8.5 mm	2.54 µm	100 µin	2	2 mm	0.079 in	100 çin	2.54 çm	Solder	Board Guide	White	UL94 V-0	0.079 "	2 mm	Nylon 4T Polyamide (PA4T)	Copper Alloy	All	Board to Cable/Wire	Push-Pull	Square	Tin	Right Angle Through Hole	0.335 "	8.51 mm	Shrouded - 4 Wall	12	Male Pin	Header

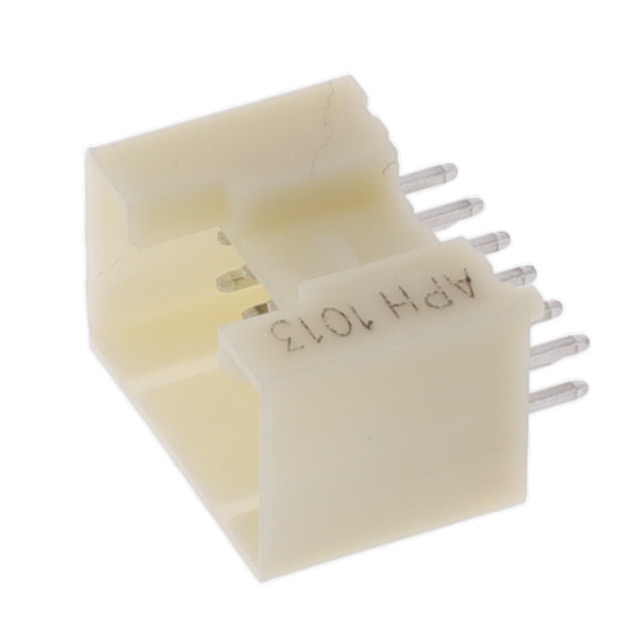

Amphenol ICC (Commercial Products) G86112111S1HR			2.54 µm	100 µin	2	2 mm	0.079 in	100 çin	2.54 çm	Solder	Board Guide	Natural	UL94 V-0	0.079 "	2 mm	Nylon 4T Polyamide (PA4T)	Copper Alloy	All	Board to Cable/Wire	Locking Ramp	Square	Tin	Through Hole	0.378 in	9.6 mm	Shrouded - 4 Wall	12	Male Pin	Header
