2385352 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

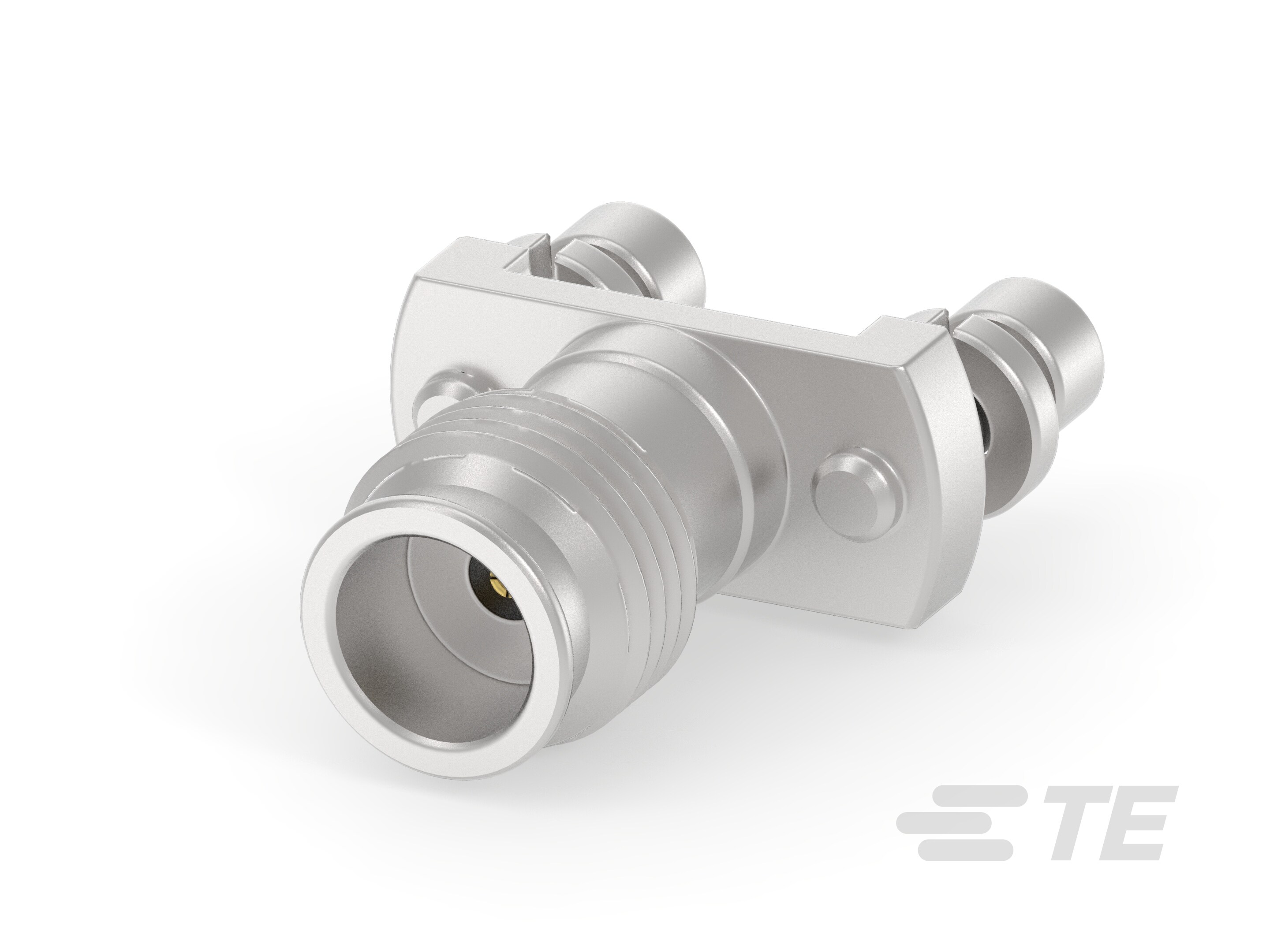

RF / COAXIAL CONNECTOR, 1.35MM COAXIAL, STRAIGHT JACK, SCREW, 50 OHM, BERYLLIUM COPPER
| Part | Frequency - Max [Max] | Body Material | Housing Color | Connector Type | Shield Termination | Contact Termination | Mating Cycles | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Dielectric Material | Connector Style | Number of Ports | Mounting Type | Impedance | Center Contact Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 90 GHz | Stainless Steel | Silver | Female Socket Jack | Screw | Compression | 500 | Gold | 125 °C | -40 °C | 150 VDC | Polyetheretherketone (PEEK) | 1.35 mm | 1 | Surface Mount | 50 Ohms | Beryllium Copper | Flange |
