ANR-20 Series
Manufacturer: OptiFuse
Beta
⌘K

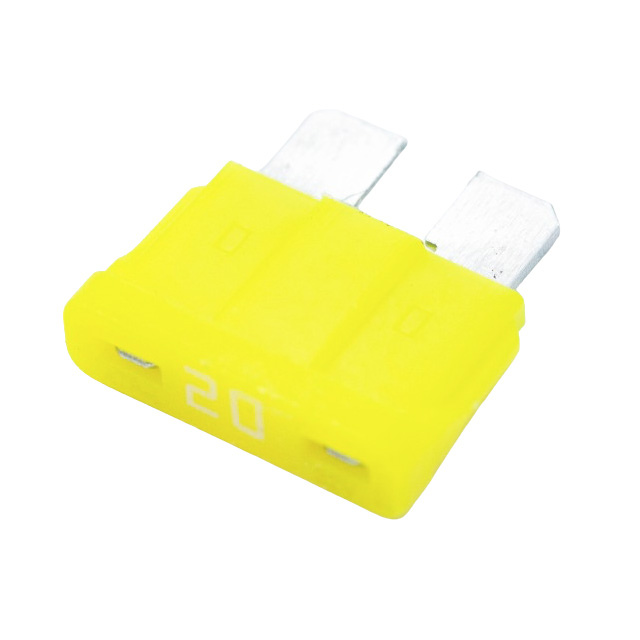

FUSE AUTO 20A 32VDC BLADE ATO
| Part | Color | Package / Case | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Approval Agency | Mounting Type | Fuse Type | Response Time | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | Yellow | Blade ATO/ATC | 1 kA | 20 A | ISO SAE | Requires Holder | Automotive | Fast Blow | 32 V | -40 C | 105 ░C | 0.494 " | 5 mm | 19.3 mm | 12.54 mm | 0.197 " | 0.76 " |
