074099 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD 11POS 2.54MM

Part	Shrouding	Contact Finish - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Material	Fastening Type	Mounting Type	Number of Positions	Termination	Number of Rows	Insulation Material	Contact Type	Insulation Color	Style	Contact Length - Mating	Contact Length - Mating [x]	Connector Type	Contact Finish - Post	Applications	Features
Molex 0740992011	Shrouded - 4 Wall	Gold	UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount	11	Solder	1	Polyester Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical
Molex 0740992006	Shrouded - 4 Wall	Gold	UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount	6	Solder	1	Polyester Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical
Molex 0740990649	Shrouded - 4 Wall	Gold	UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount	9	Solder	1	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical	Pick and Place

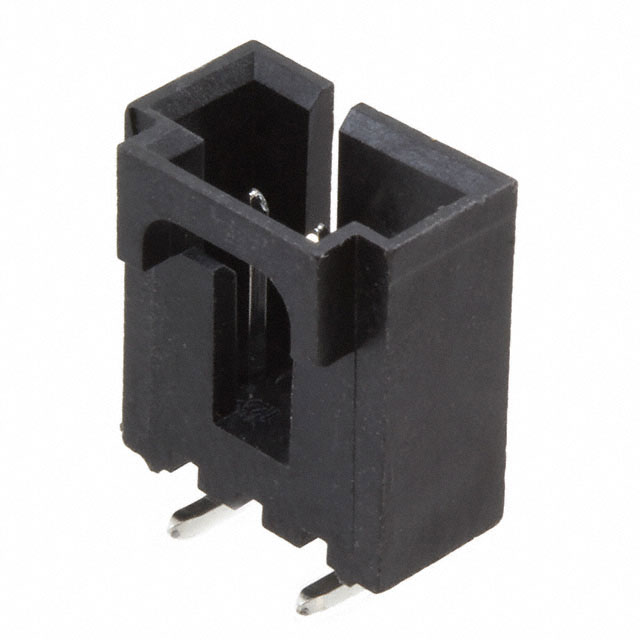

Molex 0740990603	Shrouded - 4 Wall		UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	150 Áin	3.81 Ám	150 Áin	3.81 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount		Solder	1	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical	Pick and Place
Molex 0740991009	Shrouded - 4 Wall	Gold	UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	74.8 Áin	1.9 Ám	15 µin	0.38 µm	All	Phosphor Bronze	Latch Holder	Surface Mount	9	Solder	1	Polyester Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical
Molex 0740990011	Shrouded - 4 Wall		UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	150 Áin	3.81 Ám	150 Áin	3.81 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount	11	Solder	1	Polyester Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical
Molex 0740990612	Shrouded - 4 Wall		UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	150 Áin	3.81 Ám	150 Áin	3.81 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount	12	Solder	1	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical	Pick and Place
Molex 0740990650	Shrouded - 4 Wall	Gold	UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount	10	Solder	1	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical	Pick and Place
Molex 0740990025	Shrouded - 4 Wall		UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	150 Áin	3.81 Ám	150 Áin	3.81 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount		Solder	1	Polyester Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical
Molex 0740990652	Shrouded - 4 Wall	Gold	UL94 V-0	11.43 mm	0.45 in	0.1 in	2.54 mm	Square	74.8 Áin	1.9 Ám	30 Áin	0.76 Ám	All	Phosphor Bronze	Latch Holder	Surface Mount	12	Solder	1	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	Black	Board to Cable/Wire	6.1 mm	0.24 in	Header	Tin	Automotive General Purpose Industrial Medical	Pick and Place
