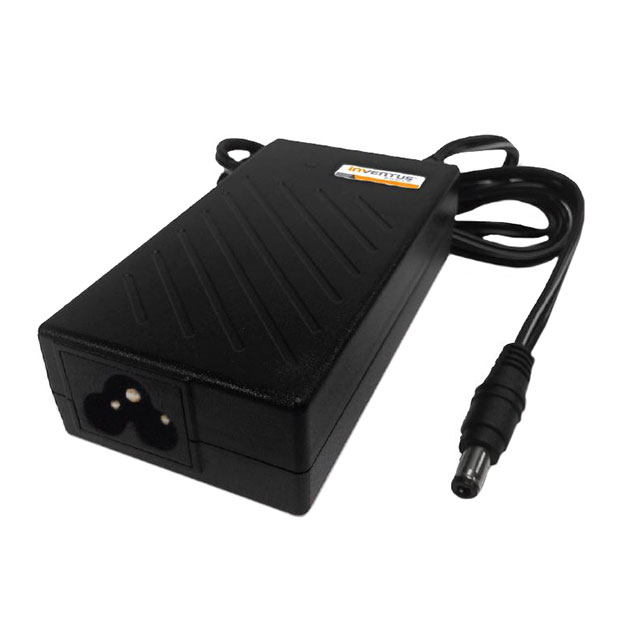

IPD3019 Series
Manufacturer: Inventus Power
Beta
⌘K
AC/DC DESKTOP ADAPTER 19V
| Part | Weight | Weight | Form | Cord Length | Cord Length | Polarization | Input Type | No Load Power Consumption | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Output Connector | Output Connector [diameter] | Output Connector [x] | Voltage - Output | Current - Output (Max) [Max] | Region Utilized | Input Connector | Applications | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Inventus Power | 0.35 lb | 160 g | Desktop (Class I) | 1.22 m | 48 in | Positive Center | Cord (Sold Separately) | 100 mW | CE cTUVus | 0 °C | 60 °C | 48.8 mm | 89.6 mm | 25.2 mm | 1.92 in | 3.53 " | 0.99 " | Barrel Plug | 2.1 mm 5.5 mm | 9.5 mm | 19 V | 1.6 A | North America | IEC 320-C6 | ITE (Commercial) | Level VI |
