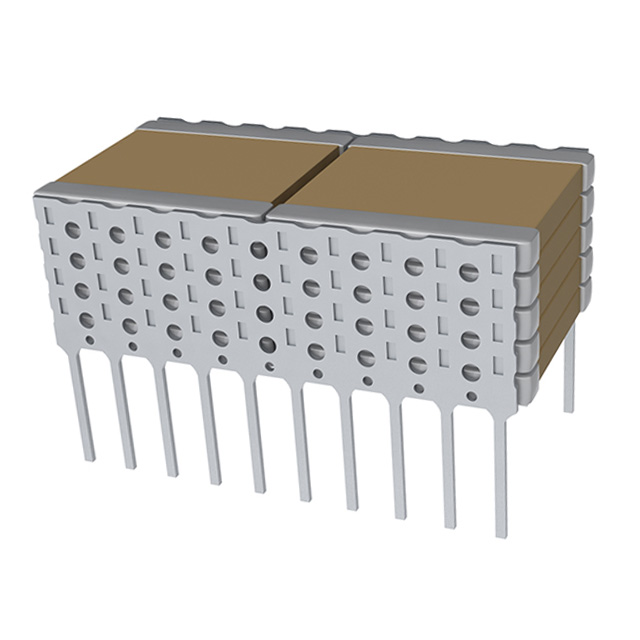

L1GN Series

Manufacturer: KEMET

Catalog

CAP CER 0.2UF 2KV C0G/NP0 20LEAD

Part	Mounting Type	Lead Style	Features	Package / Case	Temperature Coefficient	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Voltage - Rated	Voltage - Rated	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET L1GN30G204KA10	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 20 Lead	C0G NP0	SMPS Filtering	15.24 mm	0.6 "	0.2 µF	2000 V	2 kV	10 %	12.7 mm	1.009 in	0.5 "	25.64 mm	200 °C	-55 C
KEMET L1GN40D274KA05	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 8 Lead	C0G NP0	SMPS Filtering	15.24 mm	0.6 "	0.27 µF	1000 V	1 kV	10 %	11.18 mm	0.4 "	0.44 "	10.16 mm	200 °C	-55 C	0.4 "	10.16 mm
KEMET L1GN501155KA05	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 6 Lead	C0G NP0	SMPS Filtering	15.24 mm	0.6 "	1500 nF	100 V		10 %	7.62 mm	0.25 in	0.3 "	6.35 mm	200 °C	-55 C	0.25 in	6.35 mm
KEMET L1GN501604KA02	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 6 Lead	C0G NP0	SMPS Filtering		0.28 in	0.6 µF	100 V		10 %	7.62 mm	0.25 in	0.3 "	6.35 mm	200 °C	-55 C	0.25 in	6.35 mm	7.11 mm
KEMET L1GN50G253KA05	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 6 Lead	C0G NP0	SMPS Filtering	15.24 mm	0.6 "	0.025 µF	2000 V	2 kV	10 %	7.62 mm	0.25 in	0.3 "	6.35 mm	200 °C	-55 C	0.25 in	6.35 mm
KEMET L1GN69G183KA05	Through Hole	Straight		Stacked DIP 10 Lead	C0G NP0	SMPS Filtering			0.018 µF	2000 V	2 kV	10 %	7.62 mm	0.531 in	0.3 "	13.5 mm	200 °C	-55 C	0.1 in	2.54 mm	0.29 in	7.37 mm
KEMET L1GN402105KA03	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 8 Lead	C0G NP0	SMPS Filtering			1 µF	200 VDC		10 %	11.18 mm	0.4 "	0.44 "	10.16 mm	200 °C	-55 C	0.4 "	10.16 mm	9.91 mm		0.39 "

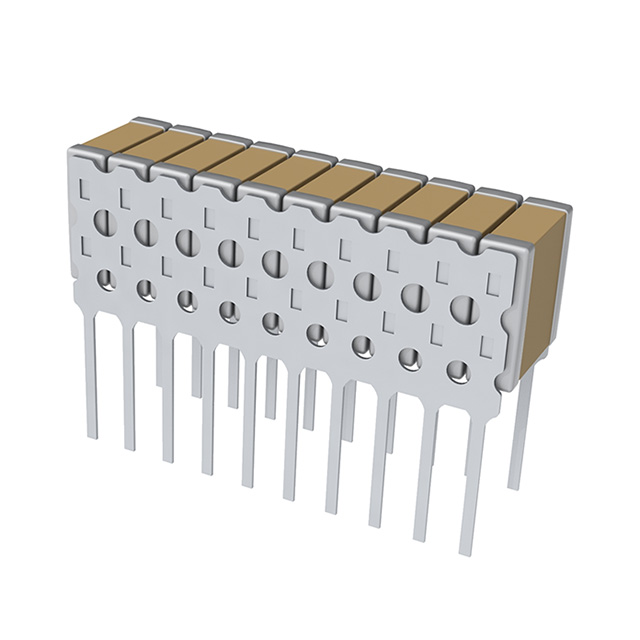

KEMET L1GN702125KA10	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 20 Lead	C0G NP0	SMPS Filtering			1.2 µF	200 VDC		10 %	7.62 mm	1.059 in	0.3 "	26.9 mm	200 °C	-55 C	0.1 in	2.54 mm	8.64 mm		0.34 in
KEMET L1GN70D903KA05	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 10 Lead	C0G NP0	SMPS Filtering			0.09 µF	1000 V	1 kV	10 %	7.62 mm	0.531 in	0.3 "	13.5 mm	200 °C	-55 C	0.1 in	2.54 mm	8.64 mm		0.34 in
KEMET L1GN69B224KA10	Through Hole	Straight	High Temperature Low ESL (Stacked)	Stacked DIP 20 Lead	C0G NP0	SMPS Filtering			0.22 µF	630 V		10 %	7.62 mm	1.059 in	0.3 "	26.9 mm	200 °C	-55 C	0.1 in	2.54 mm	0.29 in	7.37 mm
