PRPC015 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 30POS 2.54MM

Part	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Connector Type	Insulation Material	Contact Type	Contact Finish - Post	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Current Rating (Amps)	Mounting Type	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Number of Positions Loaded	Style	Shrouding	Termination	Contact Length - Mating	Contact Length - Mating	Contact Shape	Fastening Type	Contact Material	Overall Contact Length	Overall Contact Length	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PRPC015DBAN-M71RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black	0.1 in	2.54 mm	Gold	3 A	Right Angle Through Hole	2	3.05 mm	0.12 in	30	0.197 "	5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.23 in	5.84 mm	Square	Push-Pull	Brass
Sullins Connector Solutions PRPC015DAAN-RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black	0.1 in	2.54 mm	Gold	3 A	Through Hole	2	3.05 mm	0.12 in	30	0.098 "	2.5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.23 in	5.84 mm	Square	Push-Pull	Brass	0.448 in	11.39 mm
Sullins Connector Solutions PRPC015SACN-RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black			Gold	3 A	Through Hole		8.13 mm	0.32 in	15	0.098 "	2.5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.23 in	5.84 mm	Square	Push-Pull	Brass			1	0.648 in	16.47 mm
Sullins Connector Solutions PRPC015SFAN-RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black			Gold	3 A	Through Hole		3.05 mm	0.12 in	15	0.098 "	2.5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.318 in	8.08 mm	Square	Push-Pull	Brass			1	0.537 in	13.63 mm

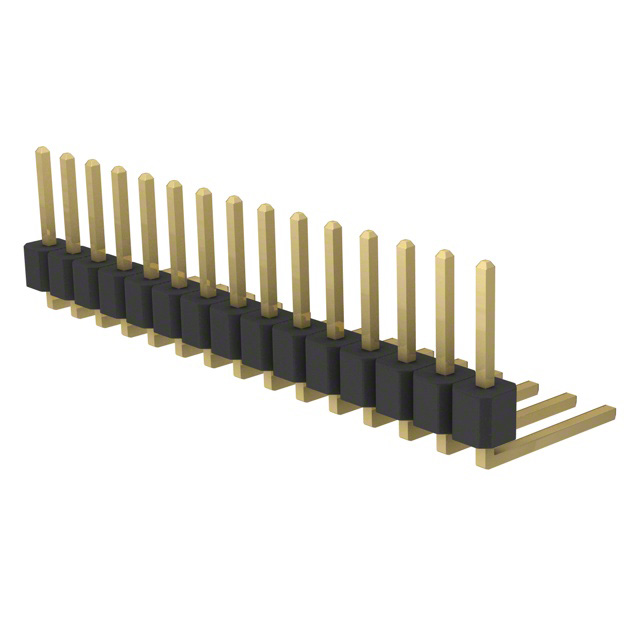

Sullins Connector Solutions PRPC015SBCN-M71RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black			Gold	3 A	Right Angle Through Hole		8.13 mm	0.32 in	15	0.098 "	2.5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.23 in	5.84 mm	Square	Push-Pull	Brass			1

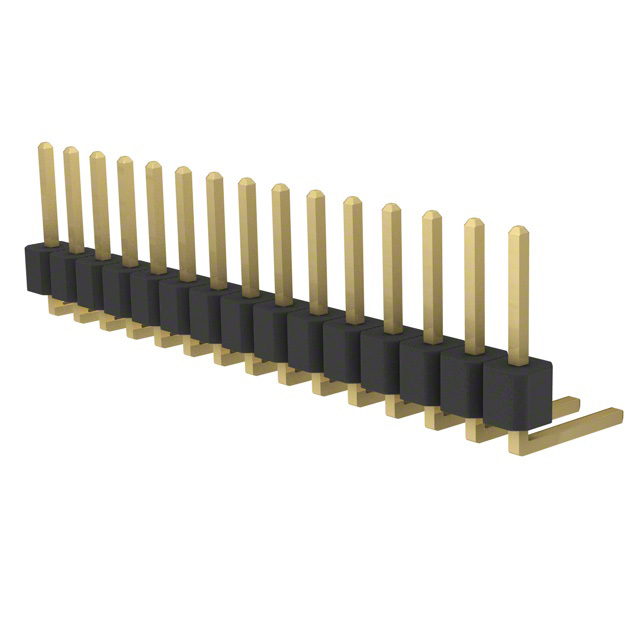

Sullins Connector Solutions PRPC015SBBN-M71RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black			Gold	3 A	Right Angle Through Hole		5.58 mm	0.22 in	15	0.098 "	2.5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.23 in	5.84 mm	Square	Push-Pull	Brass			1

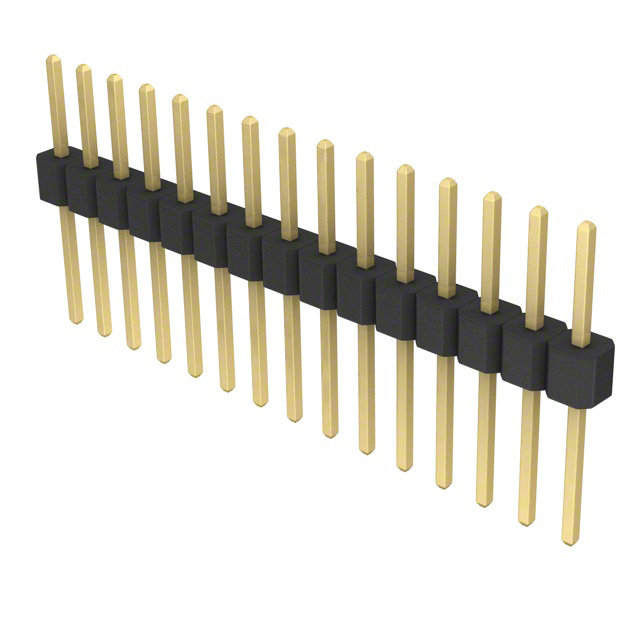

Sullins Connector Solutions PRPC015SAAN-RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black			Gold	3 A	Through Hole		3.05 mm	0.12 in	15	0.098 "	2.5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.23 in	5.84 mm	Square	Push-Pull	Brass	0.448 in	11.39 mm	1
Sullins Connector Solutions PRPC015DFAN-RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black	0.1 in	2.54 mm	Gold	3 A	Through Hole	2	3.05 mm	0.12 in	30	0.098 "	2.5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.318 in	8.08 mm	Square	Push-Pull	Brass				0.537 in	13.63 mm
Sullins Connector Solutions PRPC015DABN-RC	Flash	0.1 "	2.54 mm	UL94 V-0	Header Breakaway	Polybutylene Terephthalate (PBT)	Male Pin	Gold	Black	0.1 in	2.54 mm	Gold	3 A	Through Hole	2	5.84 mm	0.23 "	30	0.098 "	2.5 mm	-40 C	105 ░C	Flash	All	Board to Board Cable	Unshrouded	Solder	0.23 in	5.84 mm	Square	Push-Pull	Brass	0.558 in	14.18 mm
