9035-9513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

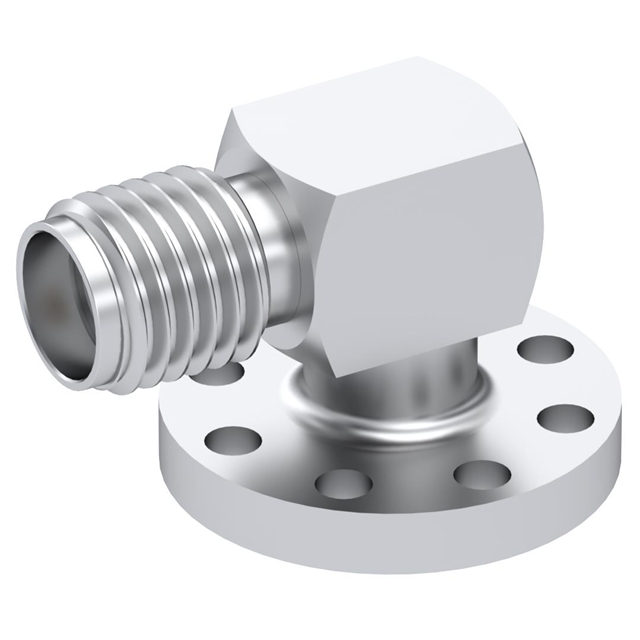

SMA / RIGHT ANGLE JACK RECEPTACL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Dielectric Material | Mating Cycles | Housing Color | Connector Style | Center Contact Material | Connector Type | Shield Termination | Mounting Feature | Impedance | Number of Ports | Mounting Type | Fastening Type | Frequency - Max [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Silver | SMA | Beryllium Copper | Female Socket Jack | Screw | Flange | 50 Ohms | 1 | Right Angle Surface Mount | Threaded | 18 GHz | Solder |
