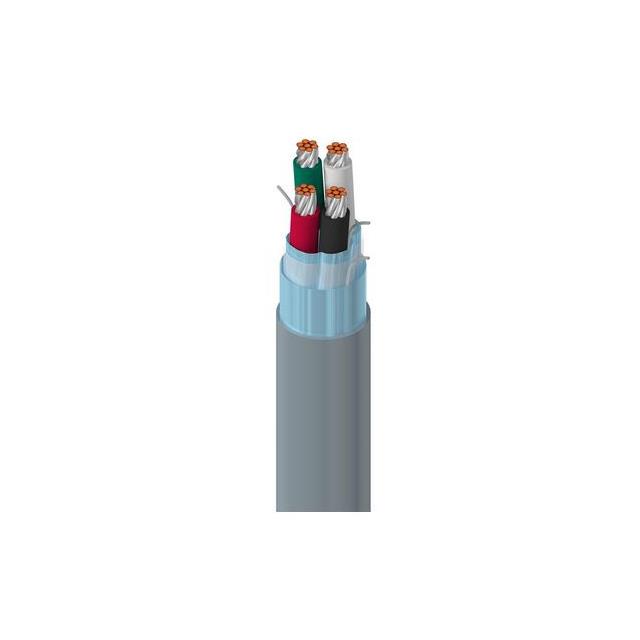

8728 Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #22 SHPR PP PVC
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Voltage | Cable Type | Shield Type | Conductor Insulation | Usage | Jacket Color | Wire Gauge | Length | Length | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | 30 AWG | 7 | 80 °C | -20 ░C | 0.215 in | 5.46 mm | 4 | 0.028 in | 0.711 mm | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Pair | Foil | Polypropylene (PP) | Audio Control Instrumentation | Chrome | 22 AWG | 304.8 m | 1000 ft | Copper Tinned |
Belden Inc. | 100 % | Aluminum Polyester | 30 AWG | 7 | 80 °C | -20 ░C | 0.215 in | 5.46 mm | 4 | 0.028 in | 0.711 mm | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Pair | Foil | Polypropylene (PP) | Audio Control Instrumentation | Chrome | 22 AWG | 152.4 m | 500 ft | Copper Tinned |
Belden Inc. | 100 % | Aluminum Polyester | 30 AWG | 7 | 80 °C | -20 ░C | 0.215 in | 5.46 mm | 4 | 0.028 in | 0.711 mm | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Pair | Foil | Polypropylene (PP) | Audio Control Instrumentation | Chrome | 22 AWG | 152.4 m | 500 ft | Copper Tinned |
