TS5A22366 Series

0.7-Ω, 5-V, 2:1 (SPDT), 2-channel analog switch with negative rail capability & 1.8-V input logic

Catalog

0.7-Ω, 5-V, 2:1 (SPDT), 2-channel analog switch with negative rail capability & 1.8-V input logic

Part	Supplier Device Package	On-State Resistance (Max) [Max]	Channel-to-Channel Matching (ΔRon)	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Crosstalk	Number of Circuits	Current - Leakage (IS(off)) (Max)	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Charge Injection	Package / Case	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Switch Circuit	Multiplexer/Demultiplexer Circuit

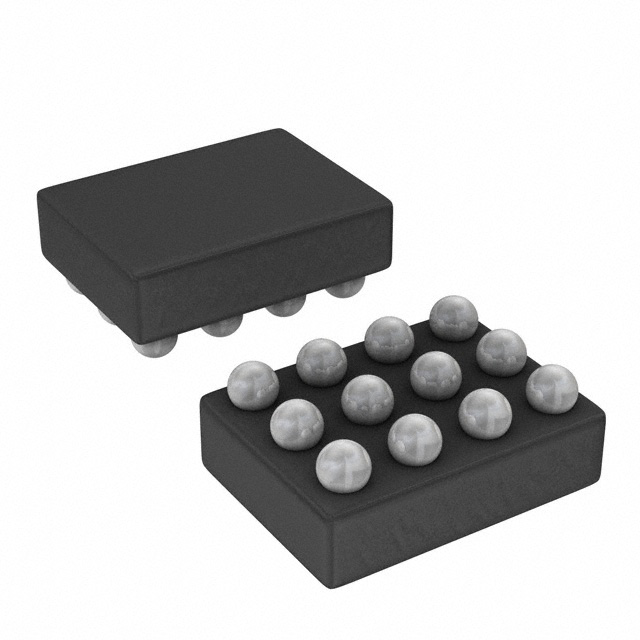

Texas Instruments TS5A22366YFCR	12-DSBGA (1.57x1.17)	1 Ohms	100 mOhm	374 ns	325 ns	Surface Mount	85 °C	-40 °C	-70 dB	2	50 nA	48 pF	48 pF	168 pC	12-UFBGA DSBGA	2.25 V	5.5 V	SPDT	2:1

Catalog

0.7-Ω, 5-V, 2:1 (SPDT), 2-channel analog switch with negative rail capability & 1.8-V input logic

Key Features

• Negative Signaling Capability: Maximum Swing From –2.75 V to 2.75 V (V+= 2.75 V)Low ON-State Resistance (0.7 Ω Typ)Excellent ON-State Resistance Matching1.8-V Compatible Control Input Threshold Independent of V+Control Inputs Are 5.5-V Tolerant2.25-V to 5.5-V Power Supply (V+)Low Charge InjectionSpecified Break-Before-Make SwitchingLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Performance Tested Per JESD 222500-V Human-Body Model(A114-B, Class II)1000-V Charged-Device Model (C101)200-V Machine Model (A115-A)Negative Signaling Capability: Maximum Swing From –2.75 V to 2.75 V (V+= 2.75 V)Low ON-State Resistance (0.7 Ω Typ)Excellent ON-State Resistance Matching1.8-V Compatible Control Input Threshold Independent of V+Control Inputs Are 5.5-V Tolerant2.25-V to 5.5-V Power Supply (V+)Low Charge InjectionSpecified Break-Before-Make SwitchingLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Performance Tested Per JESD 222500-V Human-Body Model(A114-B, Class II)1000-V Charged-Device Model (C101)200-V Machine Model (A115-A)

Description

The TS5A22366 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device features negative signal capability that allows signals below ground to pass through the switch without distortion. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications. The TS5A22366 is available is a ultra small 1.6 mm × 1.2 mm wafer-chip-scale package (WCSP) (0.4 mm pitch). The TS5A22366 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device features negative signal capability that allows signals below ground to pass through the switch without distortion. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications. The TS5A22366 is available is a ultra small 1.6 mm × 1.2 mm wafer-chip-scale package (WCSP) (0.4 mm pitch).
