HDF-R44 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB HD RCPT 44P R/A SLDR
| Part | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Color | Number of Rows [custom] | Material Flammability Rating | Shell Material, Finish | Number of Positions | Shell Size, Connector Layout | Connector Style | Connector Type | Flange Feature | Ingress Protection | Mounting Type | Termination | Current Rating (Amps) | Contact Finish | Contact Type | Contact Finish Thickness | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

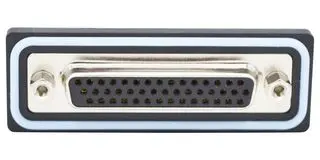

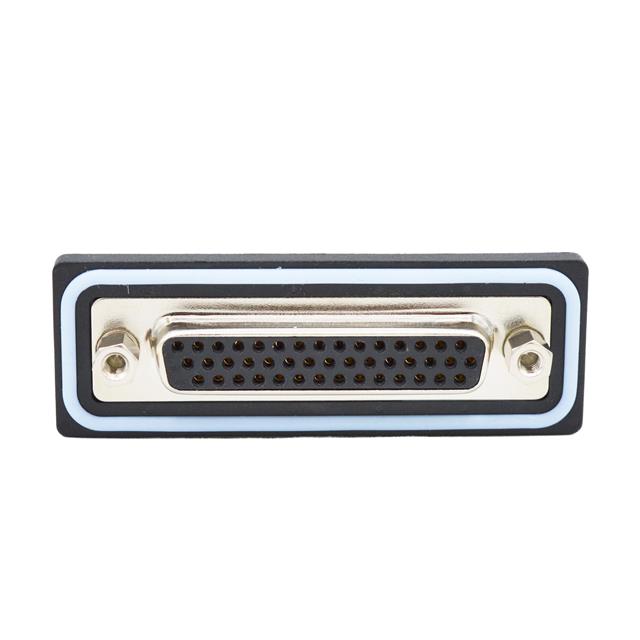

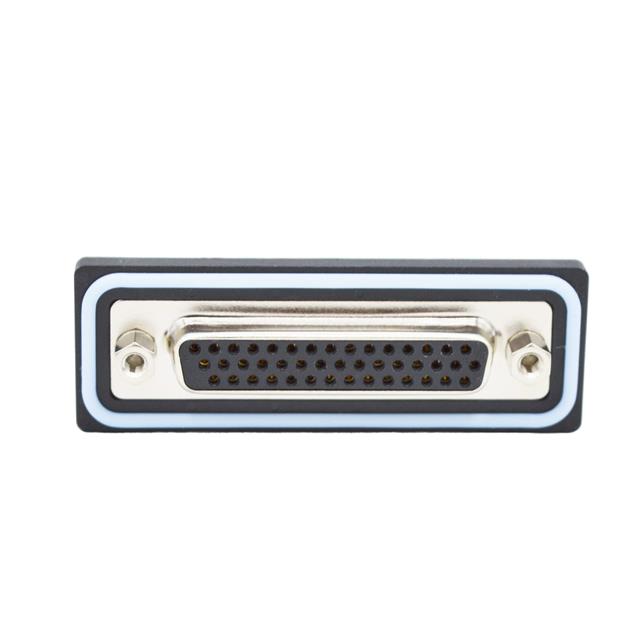

 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 3 | UL94 V-0 | Nickel Plated Steel | 44 | 3 | D-Sub High Density | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Solder | 3 A | Gold | Signal | Flash | |||

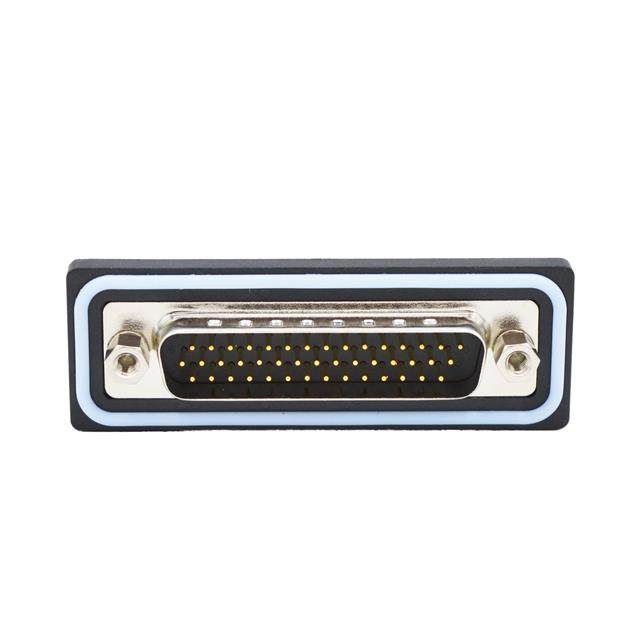

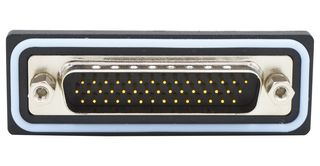

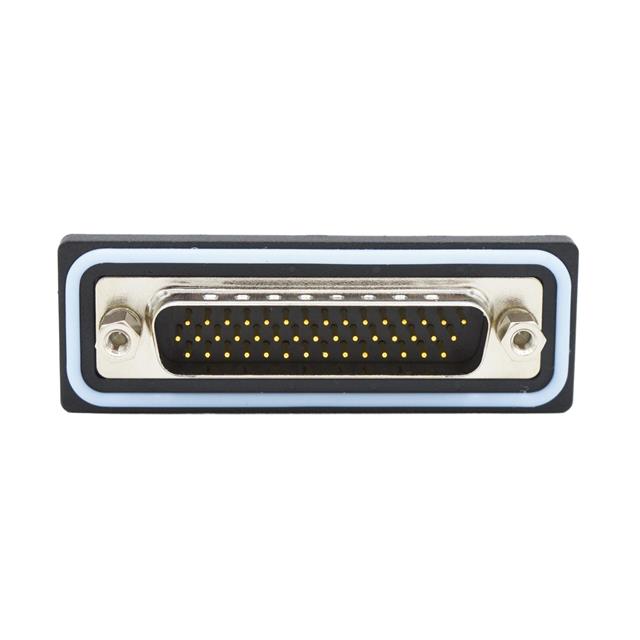

 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 3 | UL94 V-0 | Nickel Plated Steel | 44 | 3 | D-Sub High Density | Plug Male Pins | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Solder | 3 A | Gold | Signal | Flash | Board Lock Grounding Indents Mounting Brackets | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 3 | UL94 V-0 | Nickel Plated Steel | 44 | 3 | D-Sub High Density | Plug Male Pins | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Solder | 3 A | Gold | Signal | Grounding Indents | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 3 | UL94 V-0 | Nickel Plated Steel | 44 | 3 | D-Sub High Density | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Solder | 3 A | Gold | Signal | Board Lock Mounting Brackets | 30 Áin | 0.76 Ám | |
NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 3 | UL94 V-0 | Nickel Plated Steel | 44 | 3 | D-Sub High Density | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Solder | 3 A | Gold | Signal | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 3 | UL94 V-0 | Nickel Plated Steel | 44 | 3 | D-Sub High Density | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Solder | 3 A | Gold | Signal | Flash | Board Lock Mounting Brackets | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 3 | UL94 V-0 | Nickel Plated Steel | 44 | 3 | D-Sub High Density | Plug Male Pins | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Solder | 3 A | Gold | Signal | Flash | Grounding Indents |
