67996 Series

Catalog

CONN HEADER VERT 18POS 2.54MM

...

Part	Contact Type	Connector Type	Shrouding	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Shape	Number of Positions	Number of Positions Loaded	Contact Material	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Current Rating (Amps)	Material Flammability Rating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Insulation Color	Contact Finish - Mating	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 67996-418HLF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C	2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	18	All	Phosphor Bronze	0.23 in	5.84 mm	Tin	3 A	UL94 V-0	2	2.54 çm	100 çin	Through Hole	Push-Pull	Black

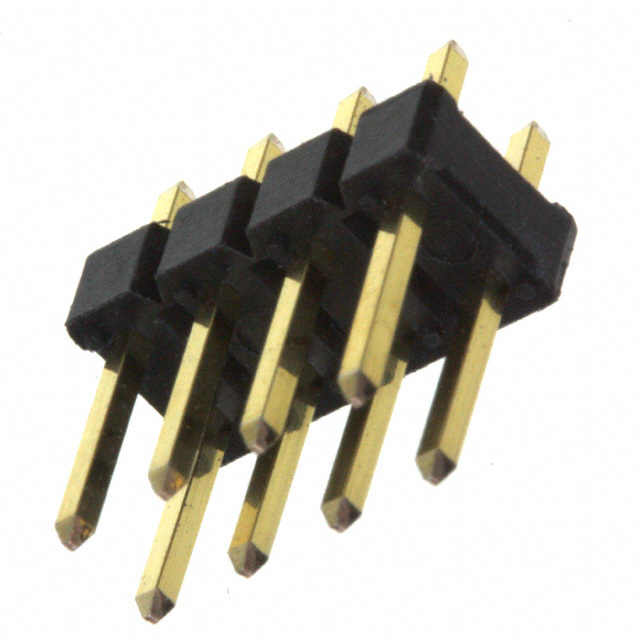

Amphenol ICC (FCI) 67996-108HLF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C	2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	8	All	Phosphor Bronze	0.23 in	5.84 mm		3 A	UL94 V-0	2	0.76 Ám	30 Áin	Through Hole	Push-Pull	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 67996-250HTLF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C	2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	50	All	Phosphor Bronze	0.23 in	5.84 mm		3 A	UL94 V-0	2	0.38 µm	15 µin	Through Hole	Push-Pull	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 67996-824-061030LF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C			0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	24	All	Phosphor Bronze	0.24 in	6.1 mm		3 A	UL94 V-0	2	0.38 µm	15 µin	Through Hole	Push-Pull	Black	Gold or Gold GXT™	0.118 in	3 mm

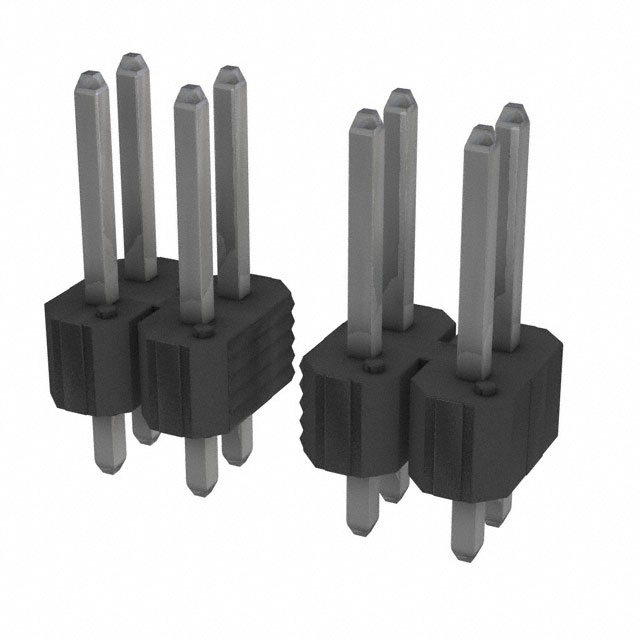

Amphenol ICC (FCI) 67996-434HLF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C	2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	34	All	Phosphor Bronze	0.23 in	5.84 mm	Tin	3 A	UL94 V-0	2	2.54 çm	100 çin	Through Hole	Push-Pull	Black

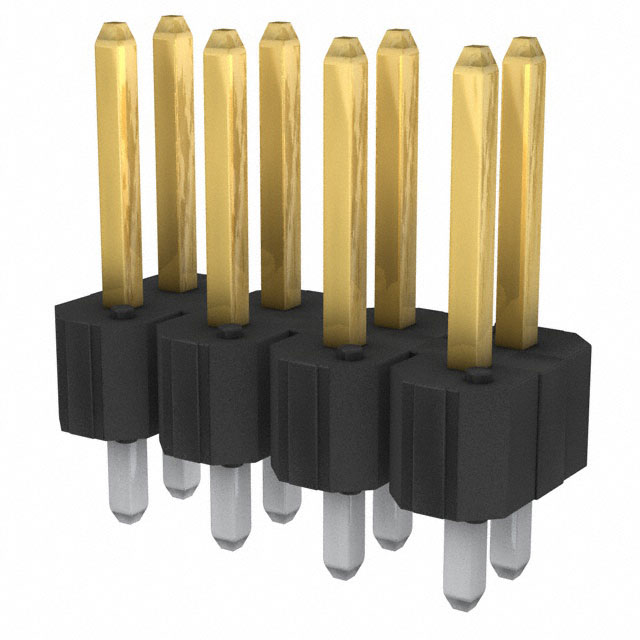

Amphenol ICC (FCI) 67996-208HLF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C	2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	8	All	Phosphor Bronze	0.23 in	5.84 mm		3 A	UL94 V-0	2	0.38 µm	15 µin	Through Hole	Push-Pull	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 67996-550HLF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C	2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	50	All	Phosphor Bronze	0.23 in	5.84 mm		3 A	UL94 V-0	2	0.38 µm	15 µin	Through Hole	Push-Pull	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 67996-138HLF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C	2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	38	All	Phosphor Bronze	0.23 in	5.84 mm		3 A	UL94 V-0	2	0.76 Ám	30 Áin	Through Hole	Push-Pull	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 67996-050HLF	Male Pin	Header	Unshrouded	0.1 in	2.54 mm	125 °C	-65 ░C	2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	50	All	Phosphor Bronze	0.23 in	5.84 mm		3 A	UL94 V-0	2	0.76 Ám	30 Áin	Through Hole	Push-Pull	Black	Gold or Gold GXT™
Amphenol ICC (FCI) 67996-472H	Male Pin	Header	Unshrouded	0.1 in	2.54 mm			2.41 mm	0.095 in	0.1 in	2.54 mm	2.54 mm	0.1 in	Solder	Square	72	All	Phosphor Bronze	0.23 in	5.84 mm			UL94 V-0	2	2.54 çm	100 çin	Through Hole	Push-Pull	Black
