65012 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

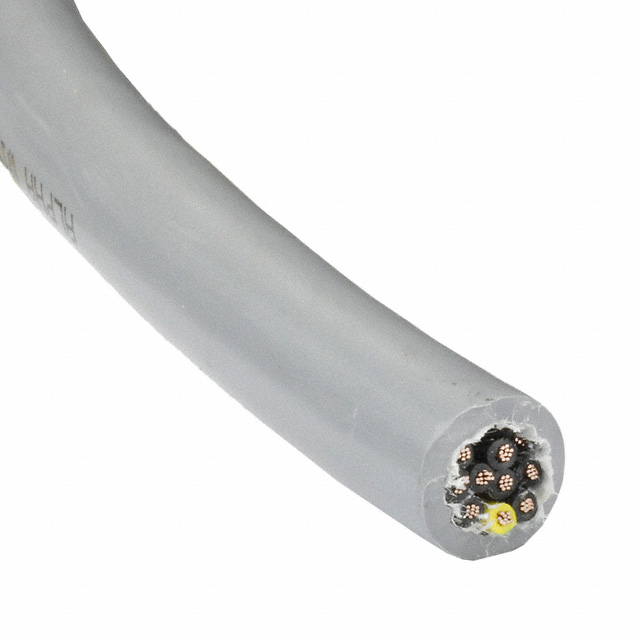

MULTICONDUCTOR CABLE, XTRA GUARD® FLEX CONTROL, UNSHIELDED, 12 CONDUCTOR, 20 AWG, 0.51 MM², 1000 FT
| Part | Conductor Material | Jacket (Insulation) Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Ratings | Wire Gauge | Length | Length | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Cable Type | Features | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | Poly-Vinyl Chloride (PVC) | Slate | 10 | 30 AWG | 12 | 11 mm | 0.433 " | ISO 10993 UL Style 2587 | 20 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 1.143 mm | 0.045 in | Multi-Conductor | Biological Compatibility | 600 V | ||
ALPHA WIRE | Copper Bare | Poly-Vinyl Chloride (PVC) | Slate | 10 | 30 AWG | 12 | 11 mm | 0.433 " | ISO 10993 UL Style 2587 | 20 AWG | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 1.143 mm | 0.045 in | Multi-Conductor | Biological Compatibility | 600 V | ||
ALPHA WIRE | Copper Bare | Poly-Vinyl Chloride (PVC) | Slate | 10 | 30 AWG | 12 | 11 mm | 0.433 " | ISO 10993 UL Style 2587 | 20 AWG | Poly-Vinyl Chloride (PVC) | 1.143 mm | 0.045 in | Multi-Conductor | Biological Compatibility | 600 V | 100 ft | 30.5 m |
