CB0.81 Series
Manufacturer: Lighthorse Technologies, Inc
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CBL ASSY IPEX MHF1 PLUG-PLG 5.5"
| Part | Length | Style | Color | Cable Type Size | Cable Type | Cable Outer Diameter | 1st Connector | Features | Frequency - Max | Operating Temperature (Max) | Operating Temperature (Min) | Cable Impedance | 2nd Connector | 2nd Connector Mounting Type | 2nd Contact Gender | Overall Impedance | 1st Connector Mounting Type | 1st Contact Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

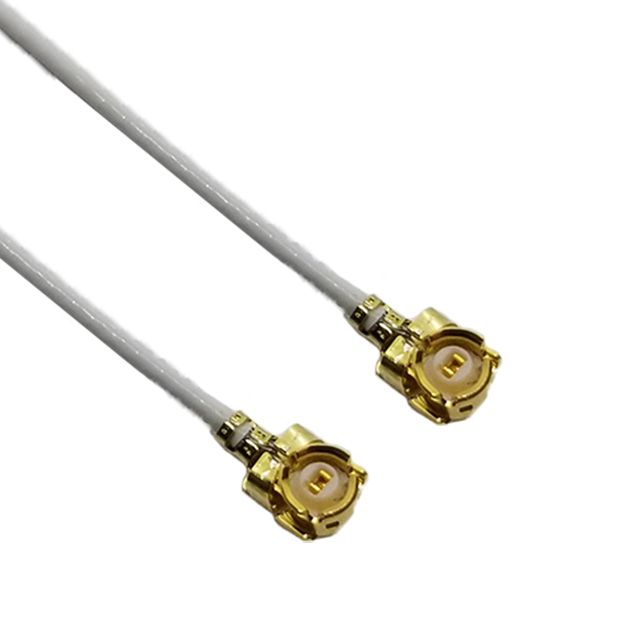

 Lighthorse Technologies, Inc | 139.7 mm | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | Opposite Orientation Shielded | 9 GHz | 90 °C | -40 °C | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |

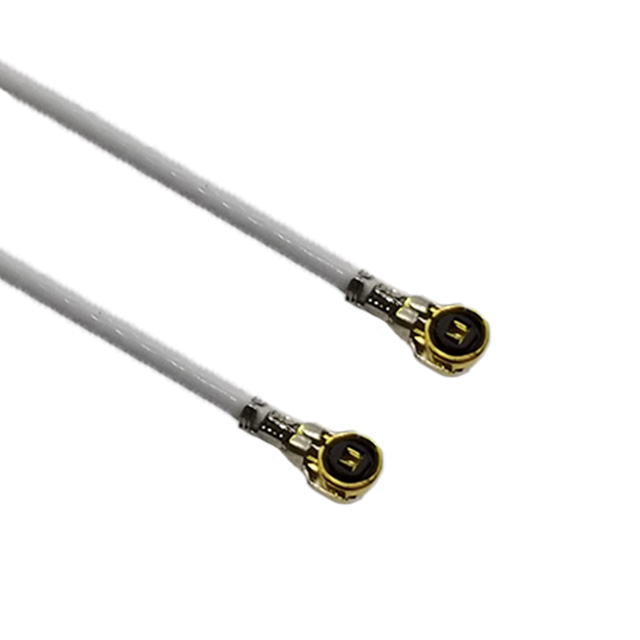

 Lighthorse Technologies, Inc | 228.6 mm | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Shielded | 12 Gbps | 90 °C | -40 °C | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
Lighthorse Technologies, Inc | 8 in | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Opposite Orientation Shielded | 12 Gbps | 90 °C | -40 °C | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
Lighthorse Technologies, Inc | 5 in | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | Opposite Orientation Shielded | 9 GHz | 90 °C | -40 °C | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
Lighthorse Technologies, Inc | 12.5 in | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | Opposite Orientation Shielded | 9 GHz | 90 °C | -40 °C | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
Lighthorse Technologies, Inc | 3 " | I-PEX MHF1 to I-PEX MHF1 IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | Opposite Orientation Shielded | 9 GHz | 90 °C | -40 °C | 50 Ohms | I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
Lighthorse Technologies, Inc | 7.5 in | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Opposite Orientation Shielded | 12 Gbps | 90 °C | -40 °C | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
Lighthorse Technologies, Inc | 2.5 in | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Opposite Orientation Shielded | 12 Gbps | 90 °C | -40 °C | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
Lighthorse Technologies, Inc | 2.5 in | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Shielded | 12 Gbps | 90 °C | -40 °C | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
Lighthorse Technologies, Inc | 25.4 mm | I-PEX MHF4L to I-PEX MHF4L IPEX MHF4L to IPEX MHF4L | White | 0.81 mm | 0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 0.81 mm | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Opposite Orientation Shielded | 12 Gbps | 90 °C | -40 °C | 50 Ohms | I-PEX MHF4L Plug IPEX MHF4L Plug Right Angle | Free Hanging (In-Line) | Female | 50 Ohms | Free Hanging (In-Line) | Female |
