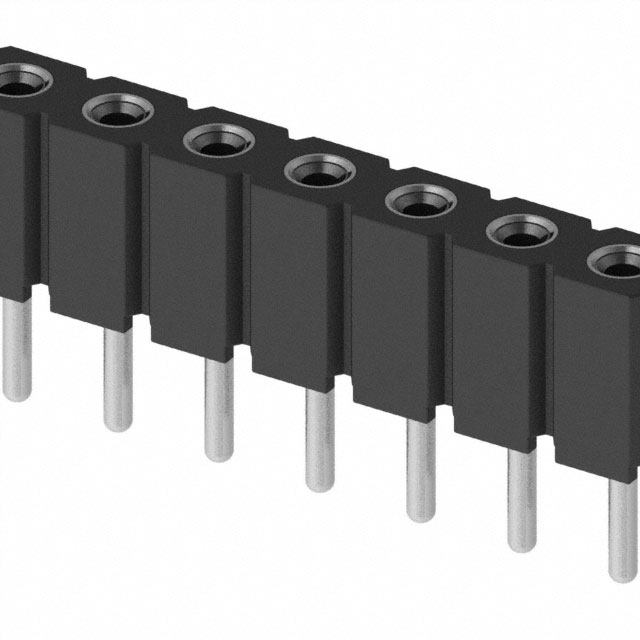

801-99 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN RCPT 9POS 0.1 TIN-LEAD PCB
| Part | Contact Material | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Rows | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Connector Type | Current Rating (Amps) | Contact Type | Number of Positions Loaded | Number of Positions | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.272 in | 6.91 mm | 1 | 0.118 in | 3 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 9 | Through Hole | ||
Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.165 in | 4.2 mm | 1 | 0.125 in | 3.18 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 18 | Through Hole | ||
Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.165 in | 4.2 mm | 1 | 0.125 in | 3.18 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 16 | Through Hole | ||
Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.165 in | 4.2 mm | 1 | 0.125 in | 3.18 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 63 | Through Hole | ||
Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Press-Fit Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.276 in | 7 mm | 1 | 0.143 in | 3.63 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 9 | Through Hole | ||
Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Press-Fit Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.276 in | 7 mm | 1 | 0.143 in | 3.63 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 48 | Through Hole | ||
Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.165 in | 4.2 mm | 1 | 0.125 in | 3.18 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 56 | Through Hole | ||
 Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.165 in | 4.2 mm | 1 | 0.125 in | 3.18 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | Through Hole | |||
Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 1 | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 29 | Right Angle Through Hole | 0.126 " | 3.2 mm | ||
Mill-Max Manufacturing Corp. | Beryllium Copper | Circular | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Solder | 100 çin | 2.54 çm | Push-Pull | UL94 V-0 | -55 C | 125 °C | Black | Tin-Lead | 0.1 " | 2.54 mm | 0.165 in | 4.2 mm | 1 | 0.125 in | 3.18 mm | Tin-Lead | Receptacle | 4.5 A | Female Socket | All | 26 | Through Hole |
