ATS-06F Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

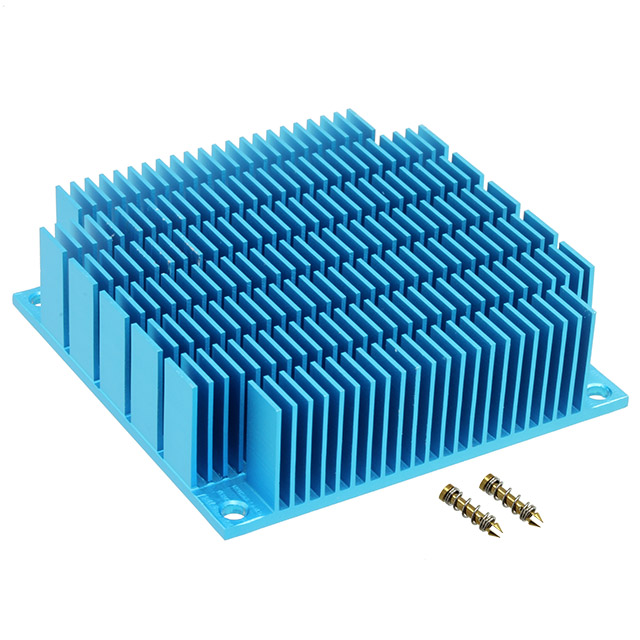

HEATSINK 70X70X6MM XCUT T766

...

Part	Attachment Method	Shape	Material Finish	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Package Cooled	Type	Length [x]	Length [x]	Material	Width [x]	Width [x]	Width [y]	Width [y]	Fin Height [z]	Fin Height [z]	Width	Width	Fin Height [custom]	Fin Height [custom]	Length	Length
Advanced Thermal Solutions Inc. ATS-06F-208-C2-R0	Push Pin	Fins Square	Blue Anodized	0.236 "	6 mm	10.5 °C/W	ASIC BGA CPU LGA	Top Mount	2.756 in	70 mm	Aluminum	70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-06F-103-C3-R1	Push Pin	Fins Square	Blue Anodized	0.374 in	9.5 mm	27.78 °C/W	ASIC BGA CPU LGA	Top Mount			Aluminum			1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-06F-08-C3-R0	Push Pin	Fins Square	Blue Anodized			14.71 °C/W	ASIC BGA CPU LGA	Top Mount	1.772 in	45 mm	Aluminum					15 mm	0.59 in	1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-06F-01-C2-R0	Push Pin	Fins Square	Blue Anodized			21.93 °C/W	ASIC BGA CPU LGA	Top Mount			Aluminum			1.575 in	40 mm					0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-06F-135-C1-R0	Push Pin	Fins Square	Blue Anodized			2.99 °C/W	ASIC BGA CPU LGA	Top Mount	2.756 in	70 mm	Aluminum	70 mm	2.756 "			20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-06F-192-C2-R0	Push Pin	Fins Square	Blue Anodized			2.35 °C/W	ASIC BGA CPU LGA	Top Mount	1.772 in	45 mm	Aluminum							1.772 in	45 mm	1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-06F-79-C1-R0	Push Pin	Fins Square	Blue Anodized			26.32 °C/W	ASIC BGA CPU LGA	Top Mount			Aluminum	30 mm	1.181 in							0.394 "	10 mm	0.03 m	1.181 in
Advanced Thermal Solutions Inc. ATS-06F-20-C2-R0	Push Pin	Fins Square	Blue Anodized	0.984 in	25 mm	7.14 °C/W	ASIC BGA CPU LGA	Top Mount			Aluminum	54 mm	2.126 in									54 mm	2.126 in
Advanced Thermal Solutions Inc. ATS-06F-197-C1-R0	Push Pin	Fins Square	Blue Anodized			10.86 °C/W	ASIC BGA CPU LGA	Top Mount	1.772 in	45 mm	Aluminum							1.772 in	45 mm	0.394 "	10 mm
Advanced Thermal Solutions Inc. ATS-06F-196-C2-R0	Push Pin	Fins Square	Blue Anodized	0.236 "	6 mm	18.11 °C/W	ASIC BGA CPU LGA	Top Mount	1.772 in	45 mm	Aluminum							1.772 in	45 mm
