KSW Series

Catalog

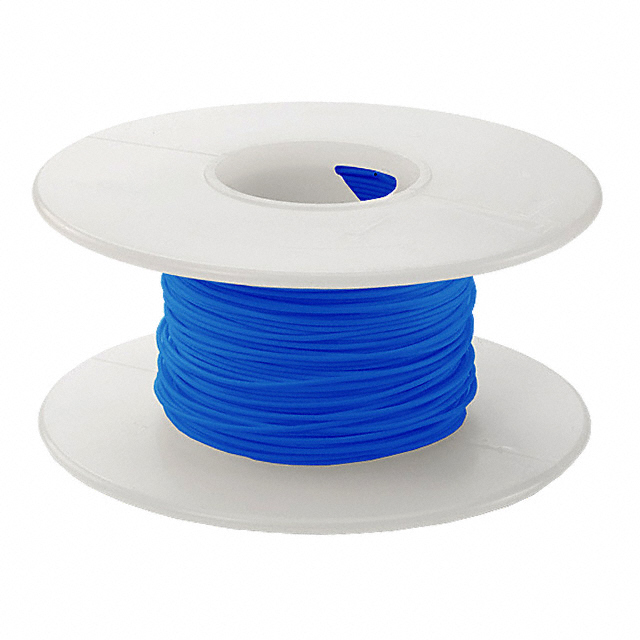

WIRE WRAP WIRE 26AWG LOW STRP FORCE 100' SPOOL BLUE

Part	Operating Temperature	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Conductor Plating	Ratings	Wire Gauge	Conductor Diameter	Conductor Diameter	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Jacket (Insulation) Material	Conductor Diameter [diameter]	Conductor Diameter [diameter]
Jonard Tools KSW26B-0100	105 C	0.005 in	0.13 mm	30.5 m	100 '	Silver	UL Style 1422	26 AWG	0.4 mm	0.016 "	0.027 in	0.69 mm	Blue	Copper Bare	Polyvinylidene Fluoride (PVDF)

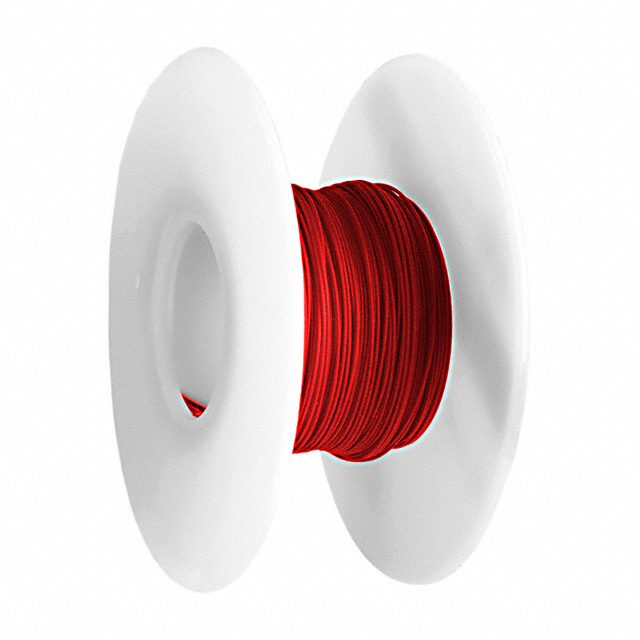

Jonard Tools KSW30R-0100		0.004 in	0.09 mm	30.5 m	100 '	Silver	UL Style 1423	30 AWG			0.019 in	0.5 mm	Red	Copper Bare	Polyvinylidene Fluoride (PVDF)	0.01 in	0.25 mm

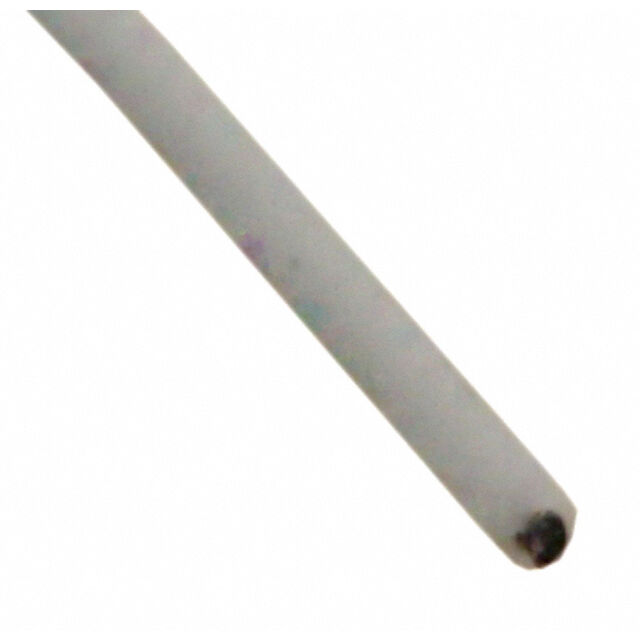

Jonard Tools KSW30W-0100		0.004 in	0.09 mm	30.5 m	100 '	Silver	UL Style 1423	30 AWG			0.019 in	0.5 mm	White	Copper Bare	Polyvinylidene Fluoride (PVDF)	0.01 in	0.25 mm
