90151 Series
Manufacturer: Preci-Dip
Beta
⌘K

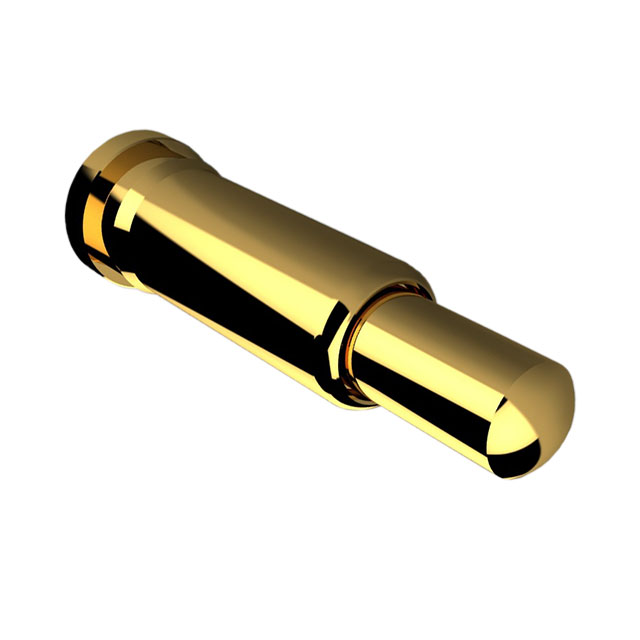

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Contact Material | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Mid Compression | Mounting Type | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Initial | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Minimum Working Height [Min] | Minimum Working Height [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 40000 | Brass Alloy | 6.5 mm | 0.256 in | 3 A | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 86.68 gf | Surface Mount | 0.072 in | 1.83 mm | 25.49 gf | 0.042 in | 1.07 mm | Gold | 0.201 in | 5.1 mm |
