119S143 Series
Manufacturer: Rosenberger
Beta
⌘K

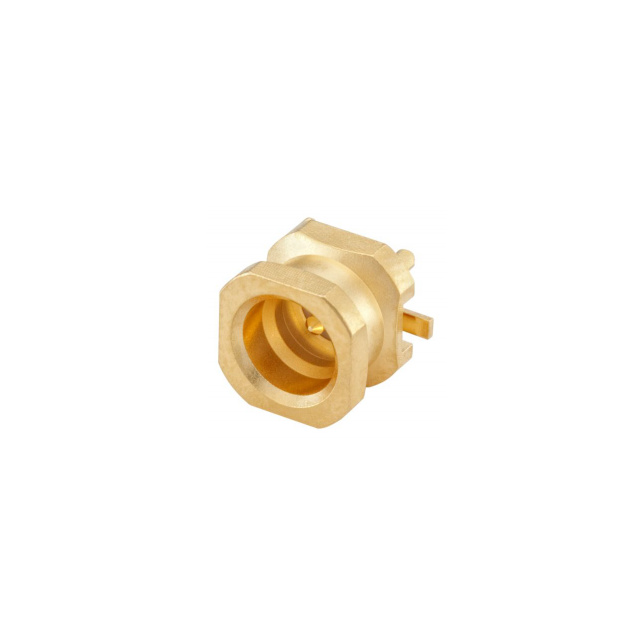

PSMP STRAIGHT PLUG PCB
| Part | Center Contact Plating | Voltage Rating | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Shield Termination | Features | Number of Ports | Contact Termination | Mounting Type | Connector Style | Center Contact Material | Connector Type | Fastening Type | Housing Color | Impedance | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | 480 V | Gold | Brass | -65 ░C | 165 °C | 1000 | Polyetheretherketone (PEEK) | Solder | Smooth Bore | 1 | Solder | Surface Mount Through Hole | PSMP | Brass | Plug Male Pin | Snap-On | Gold | 50 Ohms | 10 GHz |
