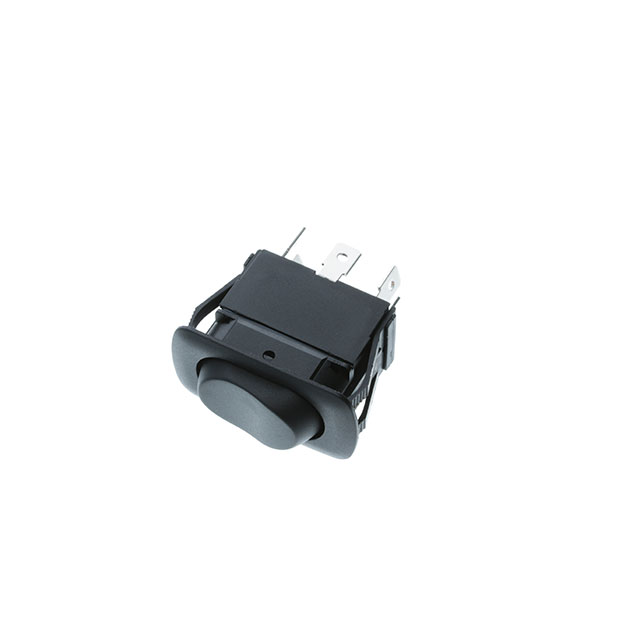

SRA1-2F Series
Manufacturer: Switch Components
Beta
⌘K
VAC SEALED IP56, DPDT ON-OFF-ON
| Part | Circuit | Quick Connect Size (0.250") | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Ingress Protection IP Rating | Ingress Protection Description | Current Rating | Voltage Rating - AC | Color - Actuator/Cap | Actuator Marking | Approval Agency | Switch Function | Actuator Type | Mounting Type | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Mechanical Life (Cycles) | Electrical Life (Cycles) | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | DPDT | 0.25 in | Quick Connect | 85 °C | -20 °C | IP56 | Dust Protected Water Resistant | 16 A | 125 V | Black | No Marking | CSA cURus ENEC | On-Off-On | Concave (Curved) | Panel Mount Snap-In | 21.2 mm | Rectangular | 36.6 mm | |||
Switch Components | DPDT | 0.25 in | Quick Connect | 85 °C | -20 °C | IP56 | Dust Protected Water Resistant | 18 A 21 A | 125 V | Black | No Marking | CSA cURus ENEC | On-Off-On | Concave (Curved) | Panel Mount Snap-In | 21.2 mm | Rectangular | 36.6 mm | 10000 Cycles | 6000 Cycles | 14 V |
