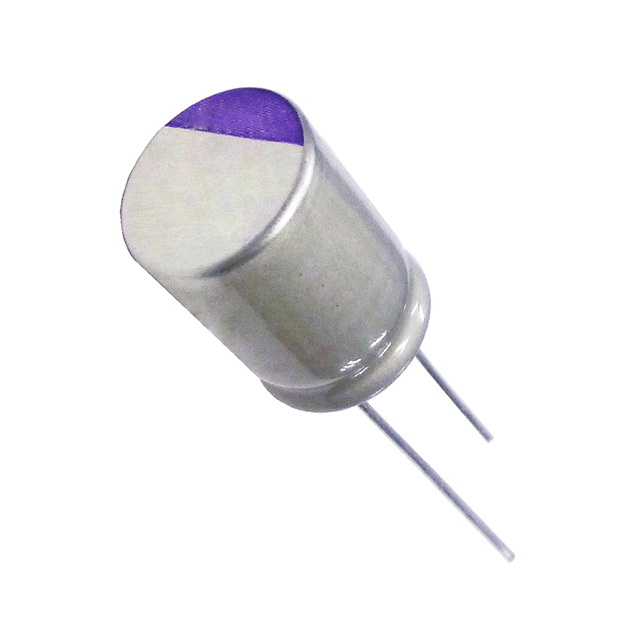

16SEPG Series

Catalog

CAP ALUMINUM POLYMER 270UF 16VDC 20%( 6.3 X 10MM) RADIAL 2.5MM 0.008 OHM 5.8A 5000H 105°C

Part	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Voltage - Rated	Package / Case	Type	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Mounting Type	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 16SEPG270M	5000 Hrs	-55 C	105 ░C	270 µF	0.248 "	6.3 mm	8 mOhms	290 mA	5.8 A	16 V	Can Radial	Polymer	20 %	10 mm	0.394 in	General Purpose	Through Hole	2.5 mm	0.098 in
Panasonic Electronic Components 16SEPG560M	5000 Hrs	-55 C	105 ░C	560 µF	0.315 in	8 mm	8 mOhms	305 mA	6.1 A	16 V	Can Radial	Polymer	20 %			General Purpose	Through Hole	3.5 mm	0.138 in	0.512 "	13 mm
Panasonic Electronic Components 16SEPG470M	5000 Hrs	-55 C	105 ░C	470 µF	0.315 in	8 mm	8 mOhms	270 mA	5.4 A	16 V	Can Radial	Polymer	20 %	9 mm	0.354 in	General Purpose	Through Hole	3.5 mm	0.138 in
