083-8SP Series
Manufacturer: Amphenol RF
Beta
⌘K

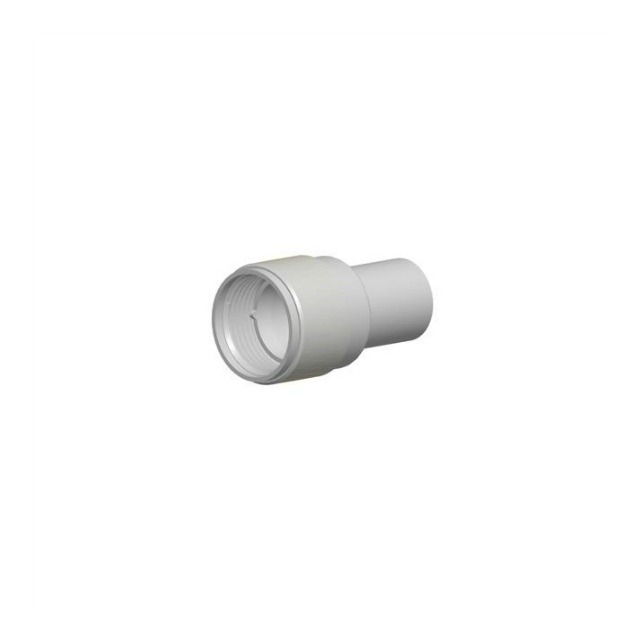

CONN UHF PLUG STR CRIMP
| Part | Number of Ports | Impedance | Dielectric Material | Mounting Type | Mating Cycles | Connector Style | Includes | Contact Termination | Body Material | Housing Color | Body Finish | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Shield Termination | Center Contact Material | Frequency - Max [Max] | Cable Group | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | 1 | Non-Constant | Phenolic | Free Hanging (In-Line) | 500 | UHF | 1 Connector 1 Ferrule | Crimp | Brass | Silver | Nickel | Male Pin Plug | -65 ░C | 165 °C | Silver | Crimp | Brass | 300 MHz | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | |
 Amphenol RF | 1 | Non-Constant | Phenol Formaldehyde (Phenolic) | Free Hanging (In-Line) | 500 | UHF | Crimp | Brass | Silver | Nickel | Male Pin Plug | -65 ░C | 165 °C | Silver | Crimp | Brass | 300 MHz | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | 500 V |
