5200FH Series
Manufacturer: Belden Inc.
Beta
⌘K

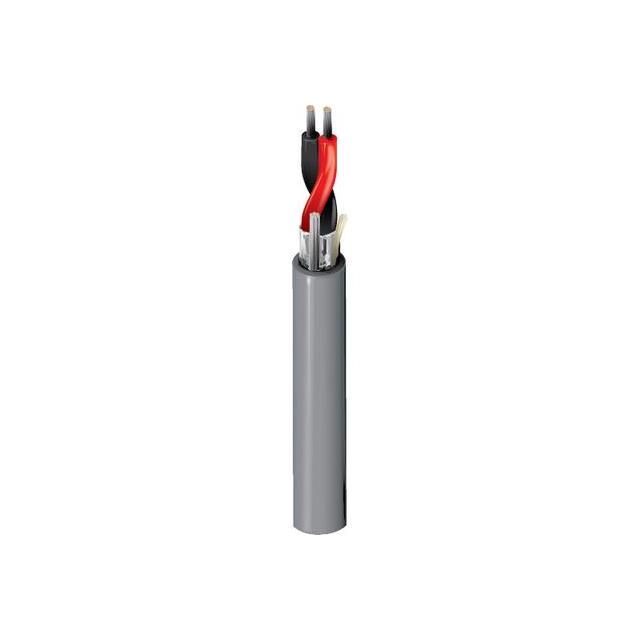

CABLE 2COND 16AWG WHT SHLD 1000'
| Part | Shield Material | Shield Coverage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Wire Gauge | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Voltage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Number of Conductors | Conductor Insulation | Usage | Length | Length | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | White | 0.017 " | 0.432 mm | Drain Wire Rip Cord | 16 AWG | Multi-Conductor | 19 | 29 | Foil | 300 VDC | Copper Tinned | 4.67 mm | 0.184 in | UL Style CMR | 2 | Polypropylene (PP) | Security Sound | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) Riser |
Belden Inc. | Aluminum | 100 % | Gray | 0.017 " | 0.432 mm | Drain Wire Rip Cord | 16 AWG | Multi-Conductor | 19 | 29 | Foil | 300 VDC | Copper Tinned | 4.67 mm | 0.184 in | UL Style CMR | 2 | Polypropylene (PP) | Security Sound | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) Riser |
Belden Inc. | Aluminum | 100 % | Gray | 0.017 " | 0.432 mm | Drain Wire Rip Cord | 16 AWG | Multi-Conductor | 19 | 29 | Foil | 300 VDC | Copper Tinned | 4.67 mm | 0.184 in | UL Style CMR | 2 | Polypropylene (PP) | Security Sound | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) Riser |
