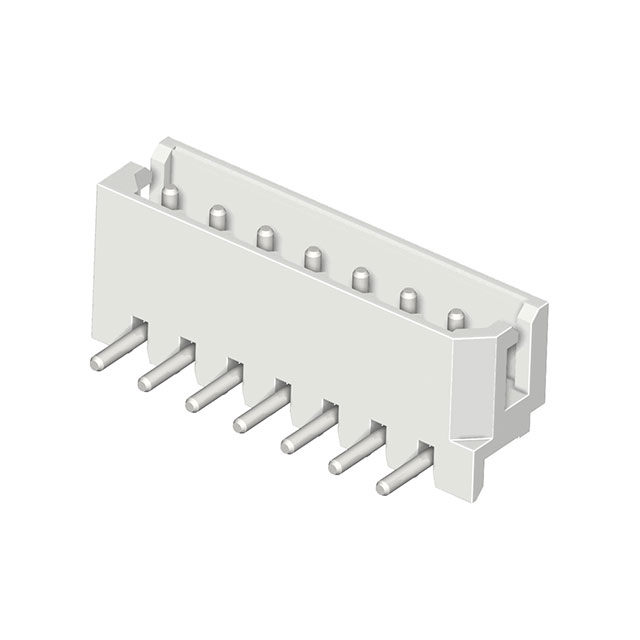

CI2502P1 Series
Manufacturer: Cvilux USA
Beta
⌘K
2 POS 2.50MM (.098) WIRE TO BOAR
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Material Flammability Rating | Fastening Type | Contact Length - Post [x] | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Shape | Number of Rows | Style | Contact Material | Insulation Color | Termination | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Type | Connector Type | Number of Positions | Shrouding | Mounting Type | Voltage Rating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | 120 Áin | 3.05 Ám | Nylon 4/6 Polyamide (PA46) | UL94 V-0 | Detent Lock | 0.134 " | 3.4 mm | 120 µin | 3.05 µm | All | 2.5 mm | 0.098 in | Circular | 1 | Board to Cable/Wire | Brass | Ivory | Solder | Tin | 85 °C | -25 °C | 3 A | Male Pin | Header | 2 | Shrouded - 4 Wall | Right Angle Through Hole | 250 VAC | 4.9 mm | 0.193 " |
