202A163 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

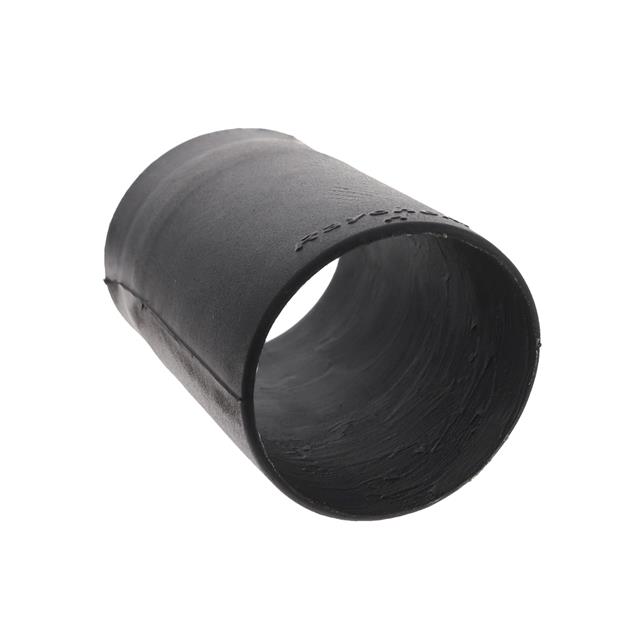

HEATSHRINK BOOT SZ63 BLACK

Part	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Features	Large Recovered Length	Large Recovered Length	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Material	Total Length Recovered [x]	Total Length Recovered [x]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Type	Shell Size - Insert	Color	Small Recovered Length	Small Recovered Length
TE Connectivity Aerospace, Defense and Marine 202A163-12-0	27.41 mm	1.079 in	Chemical Resistant	62.71 mm	2.469 in	42.7 mm	1.681 in	Fluoroelastomer (FKM) Flexible	3.902 in	99.11 mm	0.37 "	9.4 mm	27.2 mm	1.071 in	Boot	63	Black	25.2 mm	0.992 in
TE Connectivity Aerospace, Defense and Marine 202A163-25-01-0	27.41 mm	1.079 in	Fluid Resistant	62.71 mm	2.469 in	42.7 mm	1.681 in	Elastomer Semi-Rigid	3.902 in	99.11 mm	0.37 "	9.4 mm	42.7 mm	1.681 in	Boot	63	Black	25.2 mm	0.992 in
TE Connectivity Aerospace, Defense and Marine 202A163-4/42-0	27.41 mm	1.079 in	Adhesive Coating Flame Retardant	62.71 mm	2.469 in	42.7 mm	1.681 in	Polyolefin (PO) Flexible	3.902 in	99.11 mm	0.37 "	9.4 mm	42.7 mm	1.681 in	Boot	63	Black	25.2 mm	0.992 in
TE Connectivity Aerospace, Defense and Marine 202A163-3/86-0	27.41 mm	1.079 in	Adhesive Coating Flame Retardant	62.71 mm	2.469 in	42.7 mm	1.681 in	Polyolefin (PO) Semi-Rigid	3.902 in	99.11 mm	0.37 "	9.4 mm	42.7 mm	1.681 in	Boot	63	Black	25.2 mm	0.992 in
TE Connectivity Aerospace, Defense and Marine 202A163-25/86-0	27.41 mm	1.079 in	Adhesive Coating Fluid Resistant	62.71 mm	2.469 in	42.7 mm	1.681 in	Elastomer Semi-Rigid	3.902 in	99.11 mm	0.37 "	9.4 mm	42.7 mm	1.681 in	Boot	63	Black	25.2 mm	0.992 in
