Kms0 Series Series

Microminiature SMT Side Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Microminiature SMT Side Actuated

Part	Illumination	Actuator Type	Switch Travel	Ingress Protection	Termination Style	Mounting Type	Features	Mechanical Life	Circuit	Operating Force	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Switch Function	Contact Rating @ Voltage	Switch Travel [custom]

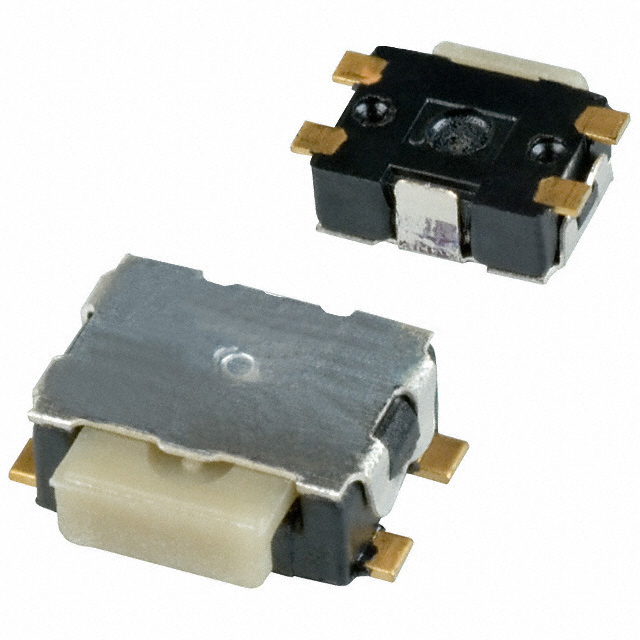

Littelfuse/Commercial Vehicle Products KMS223GPLFG	Non-Illuminated	Rectangular Button	0.25 mm	IP40	Gull Wing	Surface Mount Right Angle	Board Guide	100000 Cycles	SPST-NO	200 gf	Side Actuated	125 °C	-40 °C	4.6 mm	2.8 mm	Off-Mom	0.01 A 50 VDC

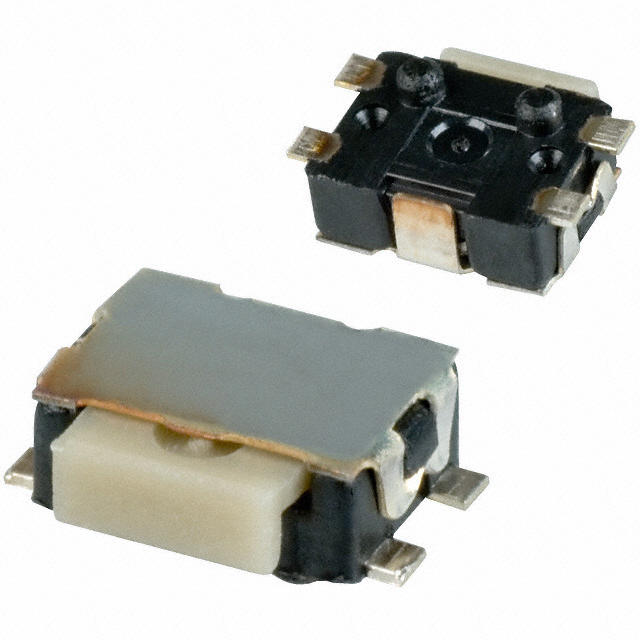

Littelfuse/Commercial Vehicle Products KMS231GLFS	Non-Illuminated	Rectangular Button		IP40	Gull Wing	Surface Mount Right Angle		100000 Cycles	SPST-NO	300 gf	Side Actuated	85 °C	-40 °C	4.6 mm	2.8 mm	Off-Mom	0.05 A 50 VDC	0.3 mm

Catalog

Microminiature SMT Side Actuated

Key Features

• Excellent tactile feel

• ESD protection

• Compact size

Description

C&K’s KMS series microminiature SMT side actuated switch is ESD protected, which prevents malfunction or breakdown of telecommunication networks, medical handheld monitors and consumer electronics. It comes in a compact size and gives users an excellent tactile feeling.
