163A167 Series
Manufacturer: Amphenol CONEC
Beta
⌘K
CONN D-SUB HD PLUG 26P SLDR CUP
| Part | Connector Style | Material Flammability Rating | Wire Gauge | Features | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish | Flange Feature | Contact Material | Dielectric Material | Mounting Type | Voltage Rating | Number of Positions | Contact Type | Connector Type | Color | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | D-Sub High Density | UL94 V-0 | 22 AWG | Grounding Indents | 3 | -55 °C | 125 °C | 3 A | 2 | (DA A) High Density | Gold | Cable Side (M3) | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Free Hanging (In-Line) | 60 VDC | 26 | Signal | Male Pins Plug | Black | ||||
Amphenol CONEC | D-Sub High Density | UL94 V-0 | 22 AWG | Grounding Indents | 3 | -55 °C | 125 °C | 3 A | Gold | Cable Side (M3) | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Free Hanging (In-Line) | 60 VDC | 44 | Signal | Male Pins Plug | Black | 3 | B DB | ||||

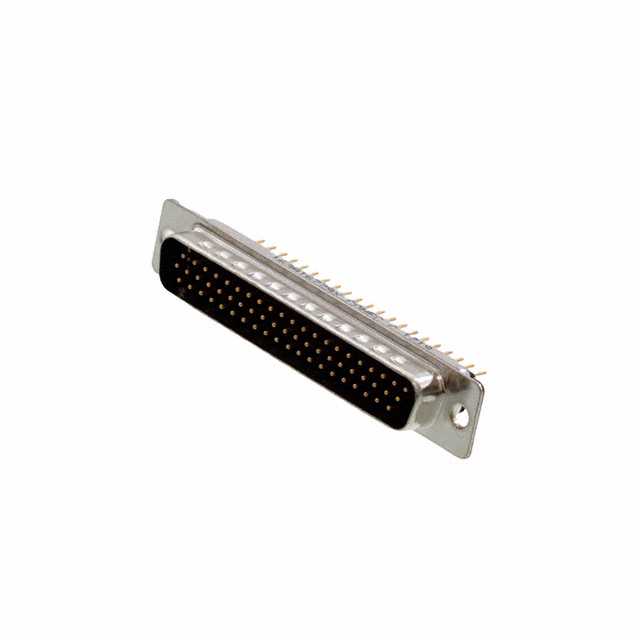

 Amphenol CONEC | D-Sub High Density | UL94 V-0 | Grounding Indents | 3 | -55 °C | 125 °C | 3 A | 4 | Gold | Housing/Shell (Unthreaded) | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | 60 VDC | 62 | Signal | Male Pins Plug | Black | Solder | Flash |
