SRD2-2A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER DPST 21A 125V
| Part | Mechanical Life | Electrical Life | Current Rating (Amps) | Mounting Type | Switch Function | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Type | Voltage Rating - DC | Color - Actuator/Cap | Circuit | Ingress Protection | Voltage Rating - AC | Actuator Marking | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

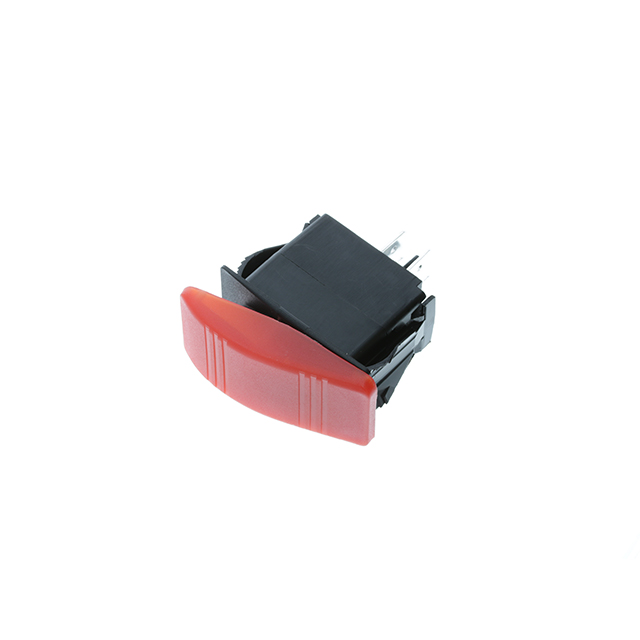

 Switch Components | 10000 Steps | 6000 Cycles | 20 A 21 A | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | 85 °C | -25 °C | 36.8 mm | 21.2 mm | Convex (Reverse V) | 14 V | Red | DPST | IP56 - Dust Protected Water Resistant | 125 V | No Marking | ||

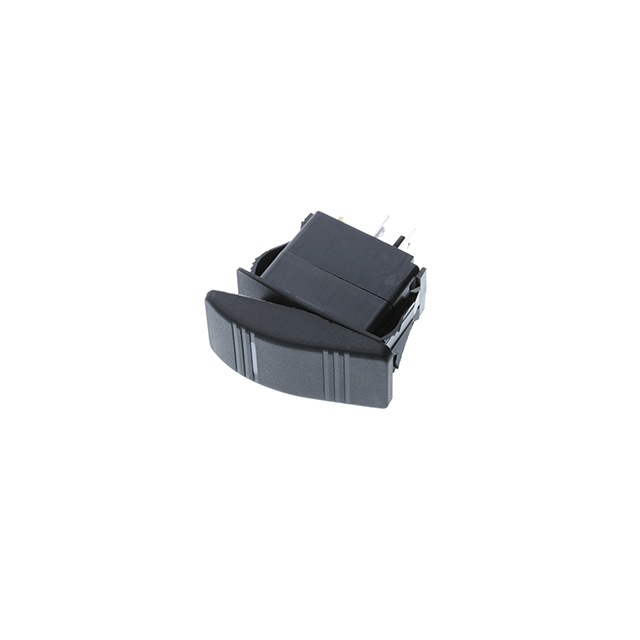

 Switch Components | 10000 Steps | 6000 Cycles | 21 A | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | 85 °C | -25 °C | 36.8 mm | 21.2 mm | Convex (Reverse V) - Illuminated | 14 V | Black | DPST | IP56 - Dust Protected Water Resistant | No Marking | 14 VDC | Green LED | |

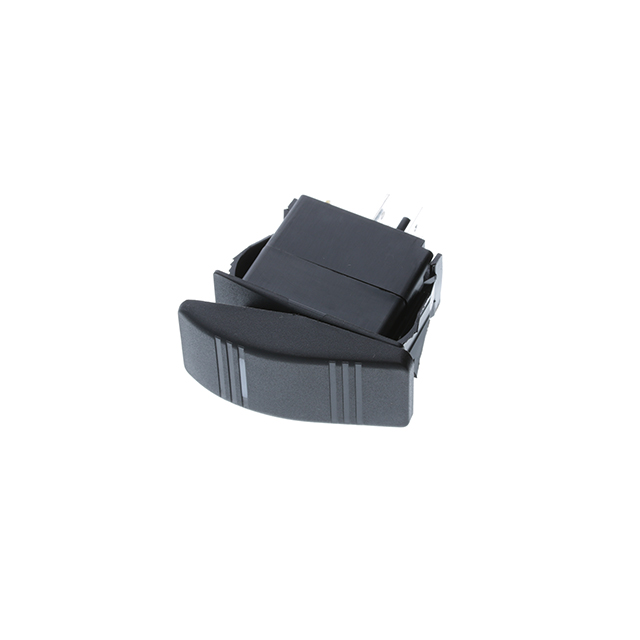

 Switch Components | 10000 Steps | 6000 Cycles | 21 A | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | 85 °C | -25 °C | 36.8 mm | 21.2 mm | Convex (Reverse V) - Illuminated | 14 V | Black | DPST | IP56 - Dust Protected Water Resistant | No Marking | 14 VDC | LED Red | |

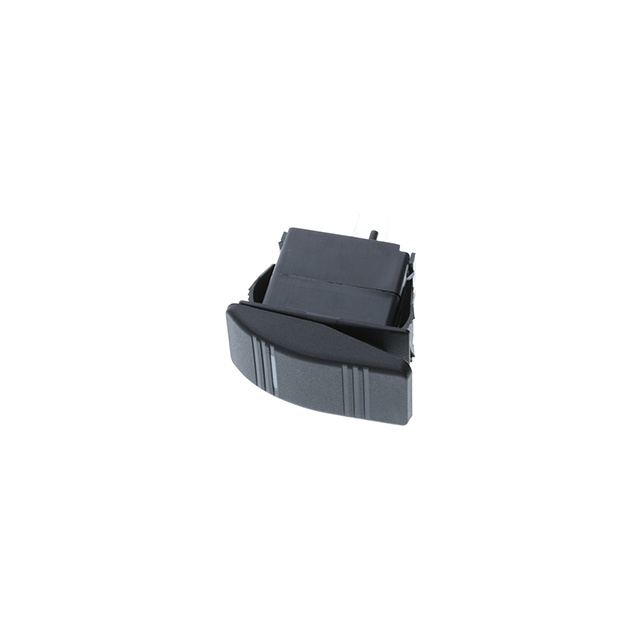

 Switch Components | 10000 Steps | 6000 Cycles | 21 A | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | 85 °C | -25 °C | 36.8 mm | 21.2 mm | Convex (Reverse V) - Illuminated | 14 V | Black | DPST | IP56 - Dust Protected Water Resistant | No Marking | 14 VDC | Amber LED | |

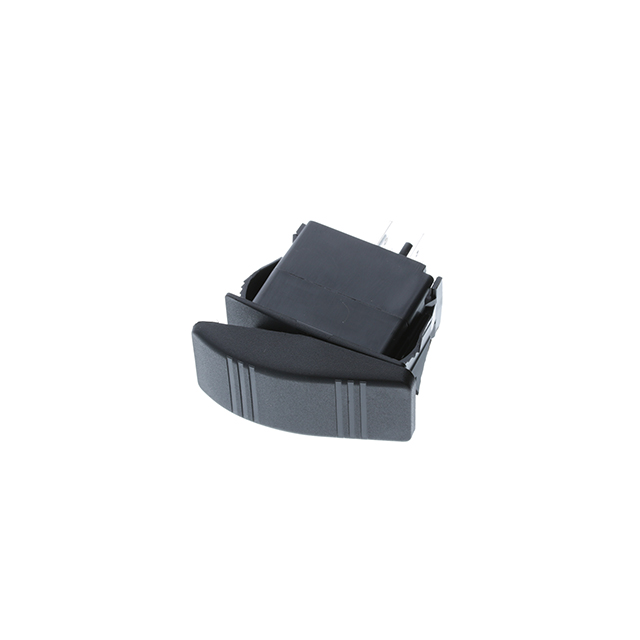

 Switch Components | 10000 Steps | 6000 Cycles | 20 A 21 A | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | 85 °C | -25 °C | 36.8 mm | 21.2 mm | Convex (Reverse V) | 14 V | Black | DPST | IP56 - Dust Protected Water Resistant | 125 V | No Marking |
