R12577 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

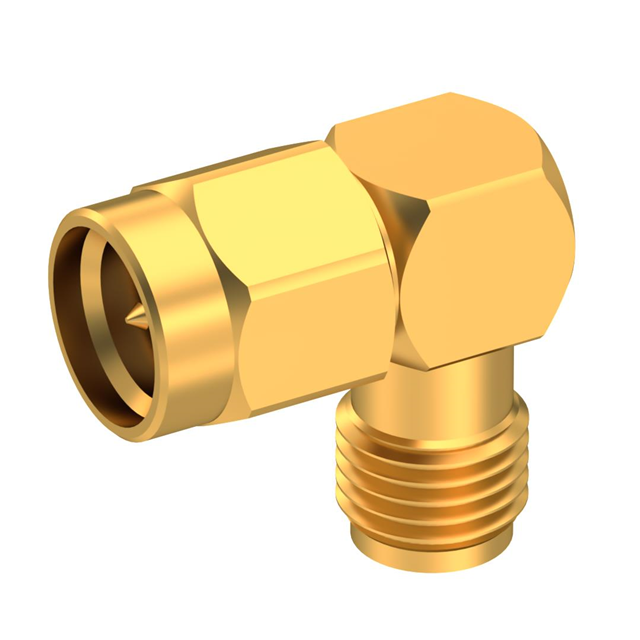

SMA MF RA
| Part | Body Finish | Body Material | Center Contact Material | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Adapter Type | Center Contact Plating | Convert From (Adapter End) | Adapter Series | Conversion Type | Style | Impedance | Frequency - Max [Max] | Mounting Type | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Stainless Steel | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Plug to Jack | Gold | Male Pin SMA Plug | SMA to SMA | Same Series | Right Angle | 50 Ohms | 18 GHz | Free Hanging (In-Line) Right Angle | SMA Jack Female Socket |
