2011 Series
Manufacturer: Curtis Industries
Beta
⌘K

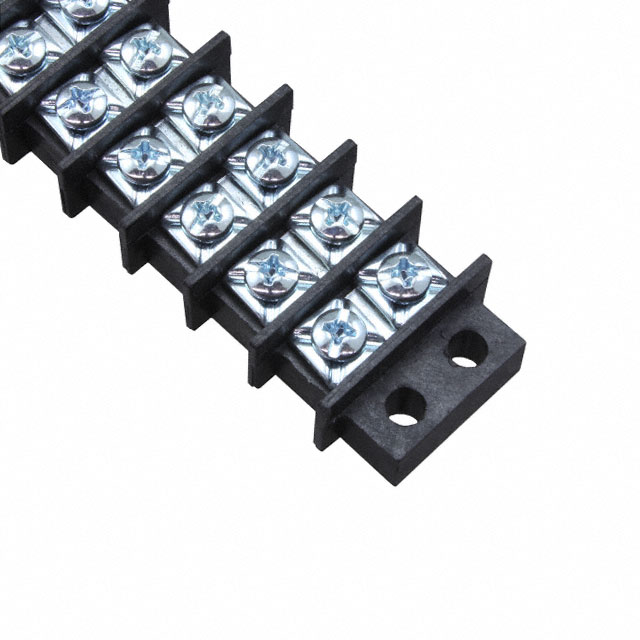

CONN BARRIER STRP 11CIRC 0.438"
| Part | Material - Insulation | Operating Temperature | Mounting Type | Material Flammability Rating | Terminal Screw Material | Terminal Block Type | Barrier Type | Pitch [x] | Pitch [x] | Number of Wire Entries | Number of Rows [custom] | Wire Gauge [Max] | Wire Gauge [Min] | Number of Circuits | Top Termination | Current Rating (Amps) | Features | Bottom Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Polyphenylene Oxide (PPO) | 110 °C | Chassis Panel | UL94 V-0 | Steel | Barrier Block | 2 Wall (Dual) | 0.438 in | 11.12 mm | 22 | 2 | 22 AWG | 10 AWG | 11 | Screws with Captive Plate | 30 A | Flange | Closed |
 Curtis Industries | Polyphenylene Oxide (PPO) | 110 °C | Chassis Panel Through Hole | UL94 V-0 | Barrier Block | 2 Wall (Dual) | 0.438 in | 11.12 mm | 22 | 2 | 22 AWG | 10 AWG | 11 | Screws | 30 A | Flange | Wire Wrap |
