ZER Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

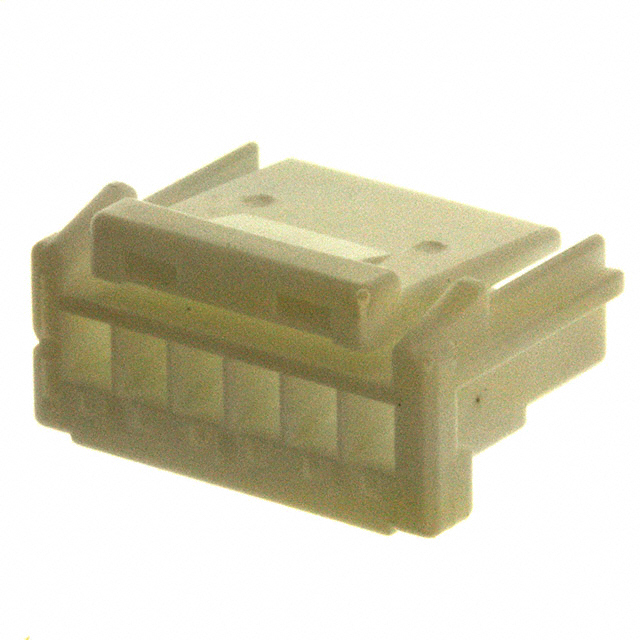

CONN RCPT HSG 6POS 1.50MM
| Part | Note | Number of Rows | Contact Type | Mounting Type | Insulation Material | Color | Fastening Type | Number of Positions | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Contact Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 6 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |

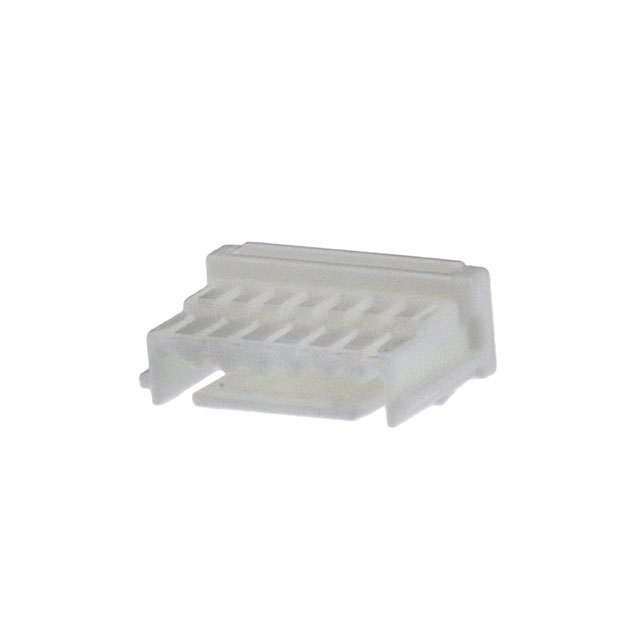

 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 7 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |

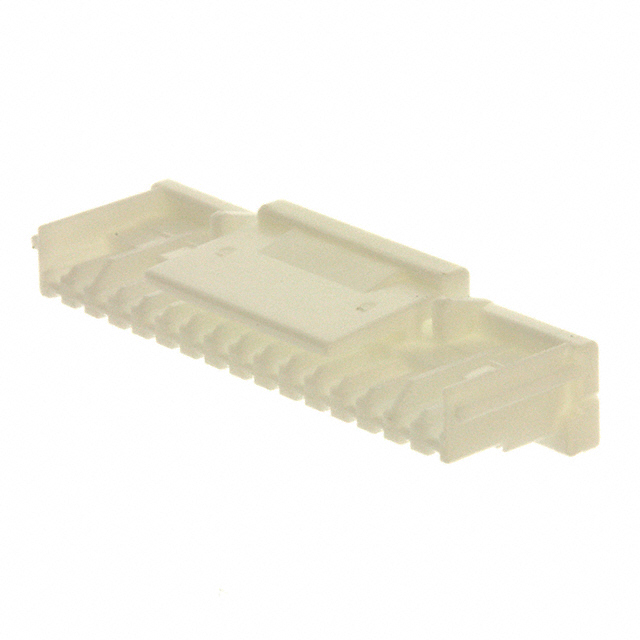

 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 16 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |

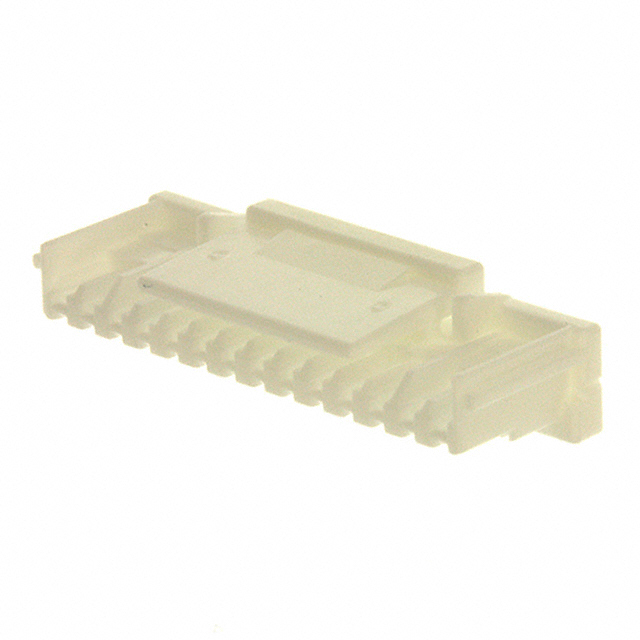

 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 14 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |

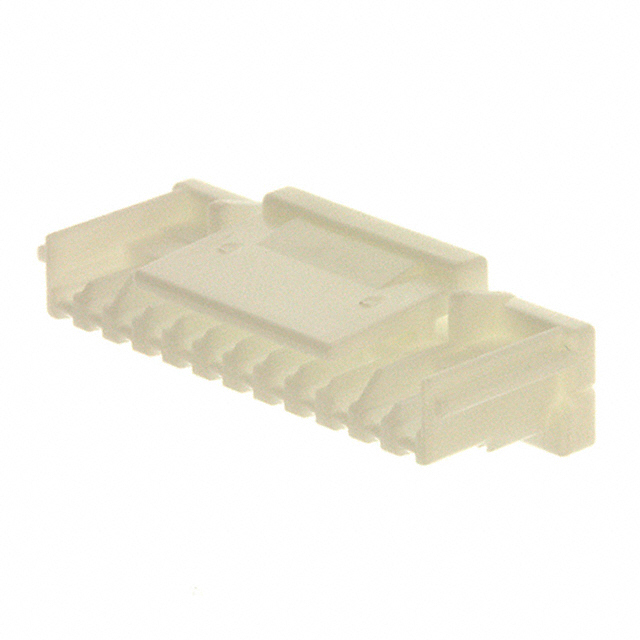

 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 12 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |
 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 13 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |

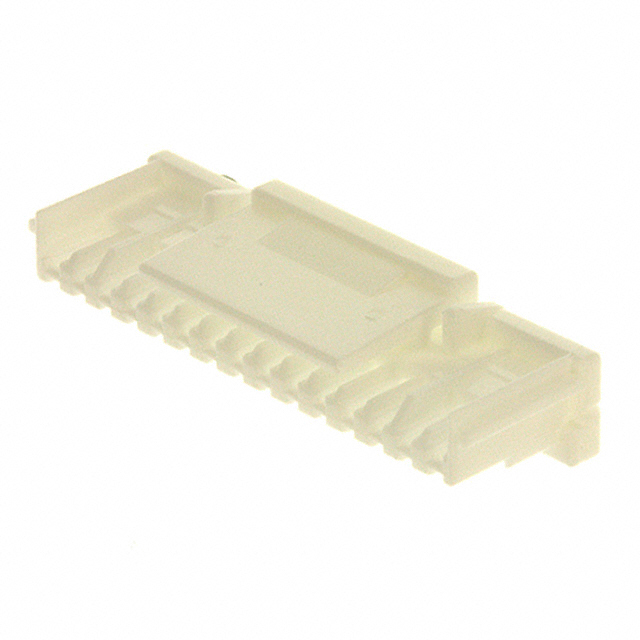

 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 15 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |

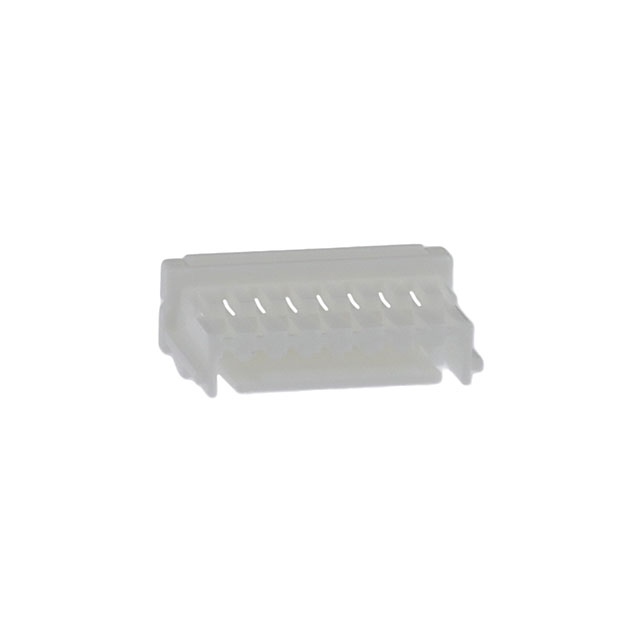

 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 8 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |

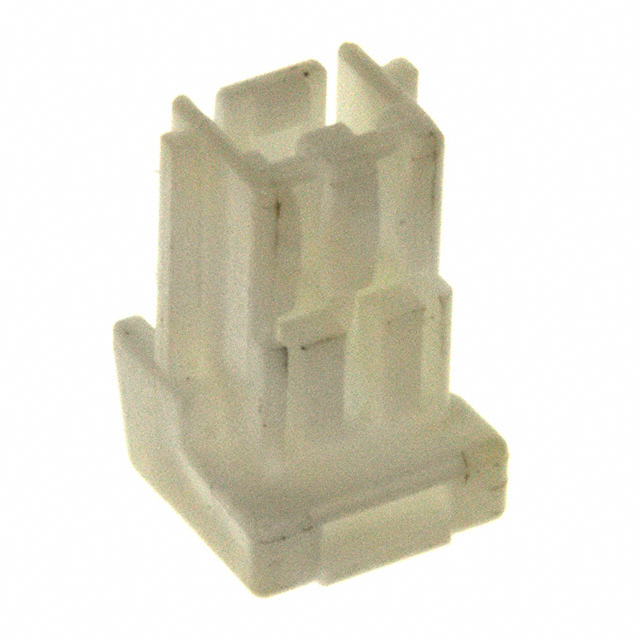

 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 2 | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |
 JST Sales America Inc. | Contacts Not Included | 1 | Female Socket | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Natural | Latch Holder | 0.059 in | 1.5 mm | 85 °C | -25 °C | Crimp | Receptacle |
