TLHB-V88G Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 35.81MM PNL MNT
| Part | Termination | Termination | Termination | Voltage Range [Max] | Voltage Range [Min] | Sound Pressure Level (SPL) | Approval Agency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Driver Circuitry | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Ingress Protection | Frequency | Operating Mode | Port Location | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

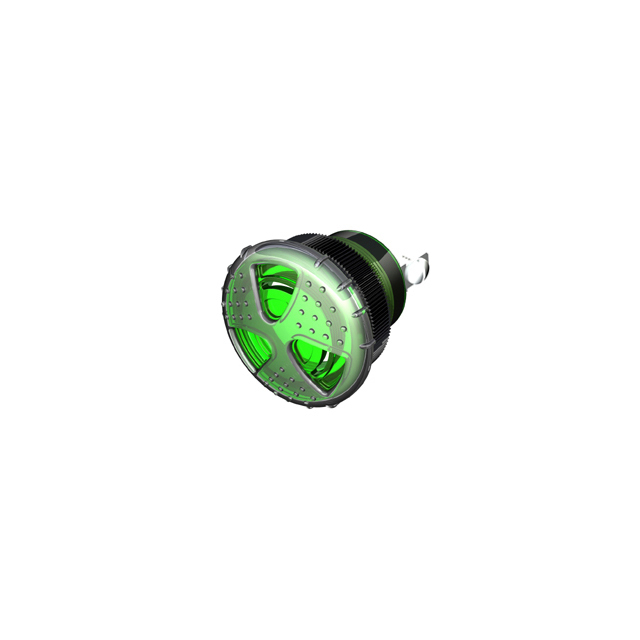

 Floyd Bell Inc | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | 30 V | 9 V | 103 dB | UL UR | 1.25 " | 31.75 mm | Panel Mount | Indicator Internally Driven | 50 mA | 110 mA | 1.41 in | 35.81 mm | IP68 - Dust Tight Waterproof | 2.9 kHz | Fast Pulse | Top | DC |

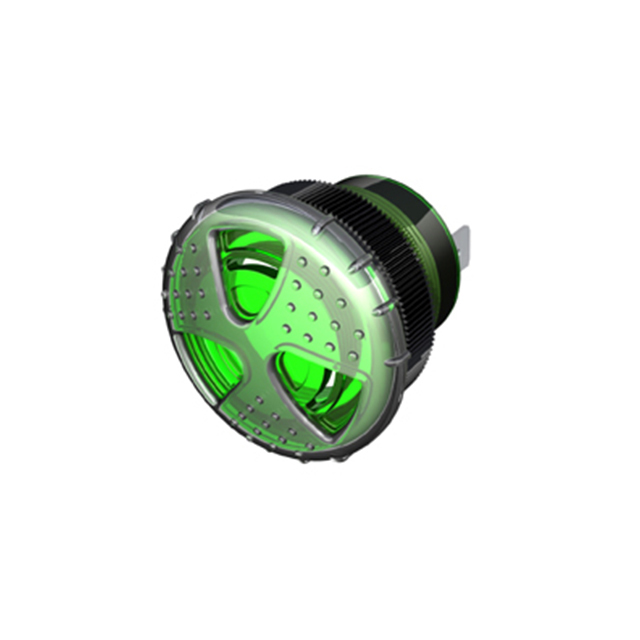

 Floyd Bell Inc | 0.25 " | Quick Connect Tab | 6.35 mm | 30 V | 9 V | 103 dB | UL UR | 1.25 " | 31.75 mm | Panel Mount | Indicator Internally Driven | 50 mA | 110 mA | 1.41 in | 35.81 mm | IP68 - Dust Tight Waterproof | 2.9 kHz | Fast Pulse | Top | DC |
