9GV0312 Series

Catalog

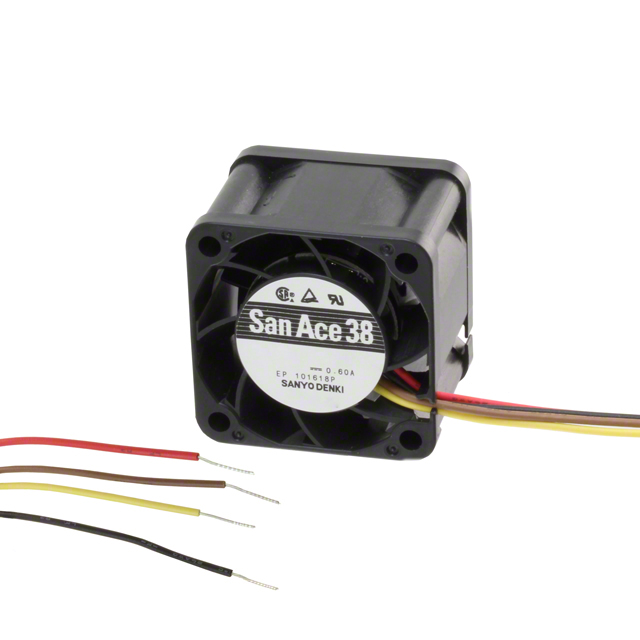

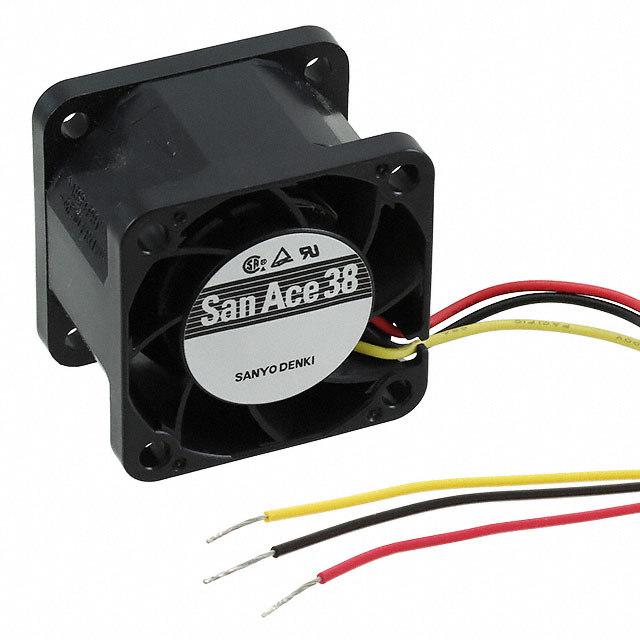

FAN AXIAL 38X28MM 12VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Material - Frame	Material - Blade	Current Rating (Amps)	Air Flow	Air Flow	Static Pressure	Static Pressure	Power (Watts)	RPM	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Weight [custom]	Weight [custom]	Width [x]	Approval Agency	Fan Type	Noise	Voltage - Rated	Termination	Features
Sanyo Denki America Inc. 9GV0312E301	13.2 VDC	4.5 V	40000 Hrs	Plastic	Plastic	0.21 A	0.367 mł/min	13.1 CFM	0.522 in H2O	130 Pa	2.52 W	10500 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	43 dB	12 VDC	3 Wire Leads	Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0312P3J031	13.2 VDC	7 V	40000 Hrs	Plastic	Plastic	600 mA	0.56 m³/min	20 CFM	1.265 in H2O	315 Pa	7.2 W	15900 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	54 dB	12 VDC	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0312G3D01	13.2 VDC	7 V	40000 Hrs	Plastic	Plastic	400 mA	0.476 m³/min	17 CFM	0.924 in H2O	230 Pa	4.8 W	13500 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	50 dB(A)	12 VDC	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 9GV0312K3D01	13.2 VDC	7 V	40000 Hrs	Plastic	Plastic	0.79 A	0.644 m³/min	23 CFM	1.707 in H2O	425.2 Pa	9.48 W	18200 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	59 dB(A)	12 VDC	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 9GV0312P3J03	13.2 VDC	7 V	40000 Hrs	Plastic	Plastic	600 mA	0.563 m³/min	20.1 CFM	1.265 in H2O	315 Pa	7.2 W	15900 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	54 dB	12 VDC	4 Wire Leads	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0312E3D01	13.2 VDC	4.5 V	40000 Hrs	Plastic	Plastic	0.21 A	0.367 mł/min	13.1 CFM	0.522 in H2O	130 Pa	2.52 W	10500 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	43 dB	12 VDC	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 9GV0312K301	13.2 VDC	7 V	40000 Hrs	Plastic	Plastic	0.79 A	0.644 m³/min	23 CFM	1.707 in H2O	425.2 Pa	9.48 W	18200 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	59 dB(A)	12 VDC	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0312H301	13.2 VDC	4.5 V	40000 Hrs	Plastic	Plastic		0.238 mł/min	8.5 CFM	0.241 in H2O	60 Pa	1.92 W	7000 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	34 dB(A)	12 VDC	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GV0312E302	13.2 VDC	4.5 V	40000 Hrs	Plastic	Plastic	0.21 A	0.367 mł/min	13.1 CFM	0.522 in H2O	130 Pa	2.52 W	10500 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	43 dB	12 VDC	2 Wire Leads
Sanyo Denki America Inc. 9GV0312P3G03	13.2 VDC	7 V	40000 Hrs	Plastic	Plastic	400 mA	0.476 m³/min	17 CFM	0.924 in H2O	230 Pa	4.8 W	13500 RPM	Ball	60 °C	60 °C	-4 °F	-20 ░C	38 mm	38 mm	0.111 lb	50.35 g	28 mm	CSA TUV UL	Tubeaxial	50 dB(A)	12 VDC	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)
