A4E330 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

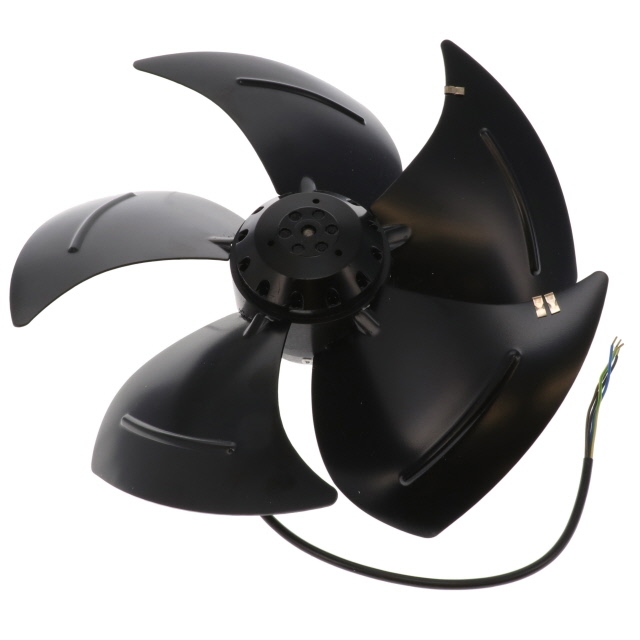

AC AXIAL FAN, 230V, CIRCULAR, 330 MM, 87 MM, BALL BEARING, 1147.72 CFM
| Part | Current Rating (Amps) | Material - Blade | Approval Agency | Bearing Type | Width [x] | Fan Type | Size / Dimension | Size / Dimension [diameter] | Features | Termination | Power (Watts) | Voltage - Rated | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 0.61 A | Steel | CCC CSA UL | Ball | 91 mm | Tubeaxial | Round | 330 mm | Capacitor Thermal Overload Protector (TOP) | 4 Wire Leads | 140 W | 230 VAC | 1600 RPM | 40 °C | -25 °C | -25 °C | 40 °C | IP44 | 75 Pa | 0.301 in H2O |
 ebm-papst Inc. | 580 mA | Steel | CE | Ball | 92 mm | Tubeaxial | Round | 332 mm | Capacitor Thermal Overload Protector (TOP) | 4 Position Rectangular Connector | 130 W | 230 VAC | 1370 RPM | IP44 | ||||||
 ebm-papst Inc. | 0.61 A | Steel | CCC EAC | Ball | 93 mm | Tubeaxial | Round | 330 mm | Capacitor Thermal Overload Protector (TOP) | 4 Wire Leads | 140 W | 230 VAC | 1600 RPM | 40 °C | -25 °C | -25 °C | 40 °C | IP44 | 75 Pa | 0.301 in H2O |
