E48SK Series

Catalog

36-75VIN, 12V 450W, 2250VISO, W/

Part	Supplier Device Package	Approval Agency	Voltage - Isolation	Number of Outputs	Applications	Power (Watts)	Features	Efficiency	Current - Output (Max) [Max]	Standard Number	Voltage - Input (Max) [Max]	Control Features	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type

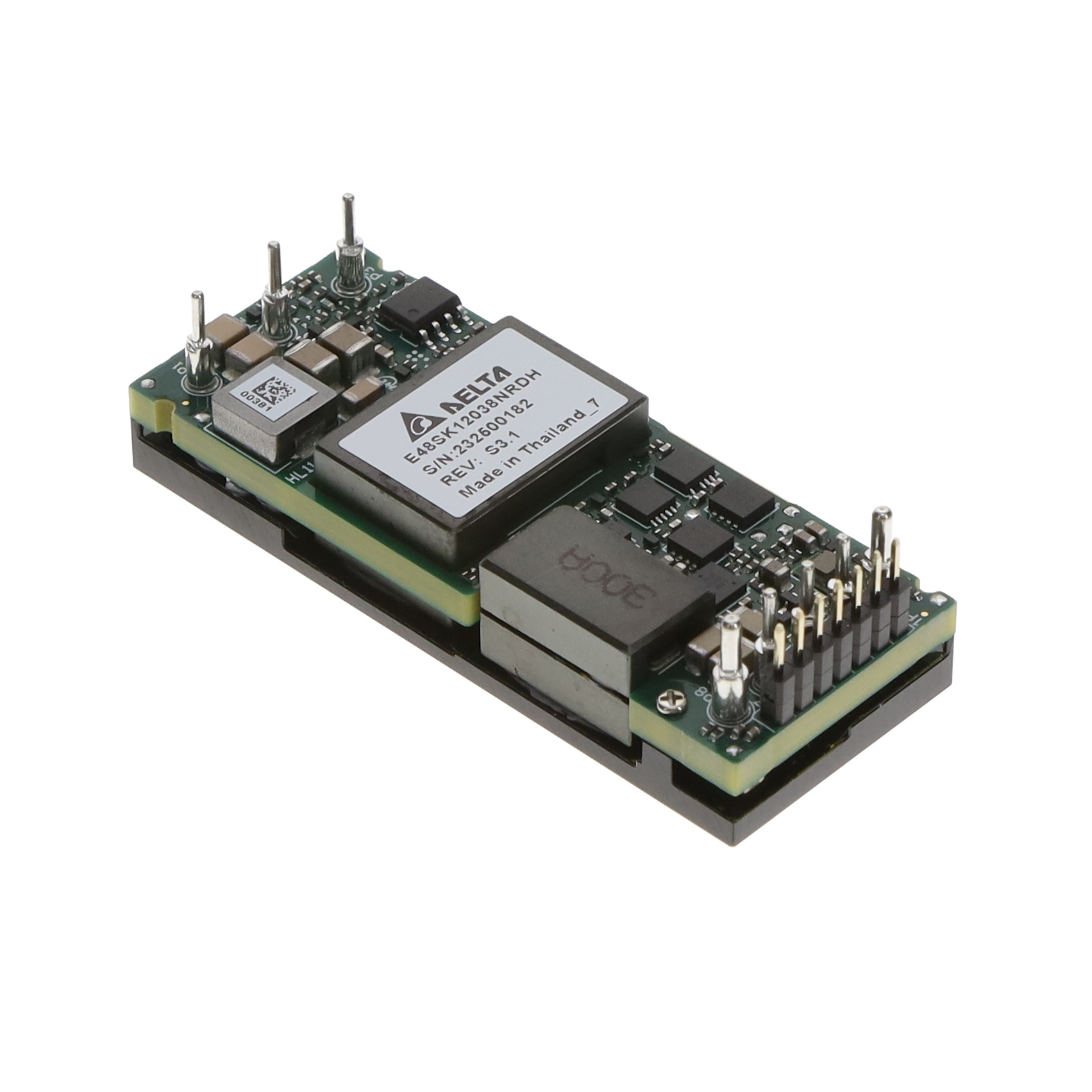

Delta Electronics E48SK12038NRDH	Eighth Brick	CSA EN IEC UL	2250 VDC	1	ITE (Commercial)	450 W	Adjustable Output Remote On/Off Remote Sense	95.6 %	37.5 A	60950-1 62368-1	75 V	Active Low Enable	Isolated Module	12 V	36 V	Eighth Brick	22.8 mm	0.5 in	58.4 mm	2.3 in	0.9 in	12.7 mm	85 °C	-40 C	Through Hole
