OSTTD03 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

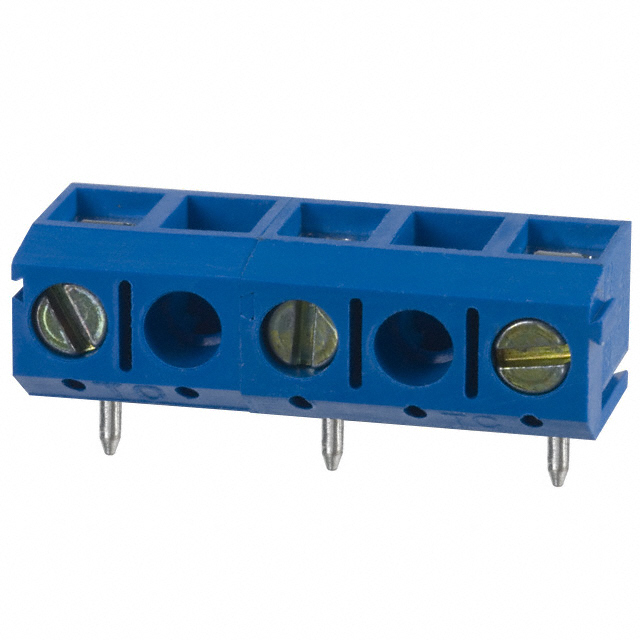

TERM BLK 3POS TOP ENTRY 10MM PCB
| Part | Screw Material - Plating | Housing Material | Contact Material - Plating | Clamp Material - Plating [custom] | Screw Thread | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Features | Positions Per Level | Number of Levels | Current | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Wire Termination | Pitch | Pitch | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Steel Galvanized - Chromate Plated | Polyamide (PA) Nylon | Brass | Stainless Steel | M2.6 | 3.5 Lb-In | 0.4 Nm | -33 °C | 120 °C | Interlocking (Side) | 3 | 1 | 16 A | Vertical with Board | 14 AWG | 22 AWG | Screw - Leaf Spring Wire Guard | 0.394 in | 10 mm | Through Hole |
