GST36U12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

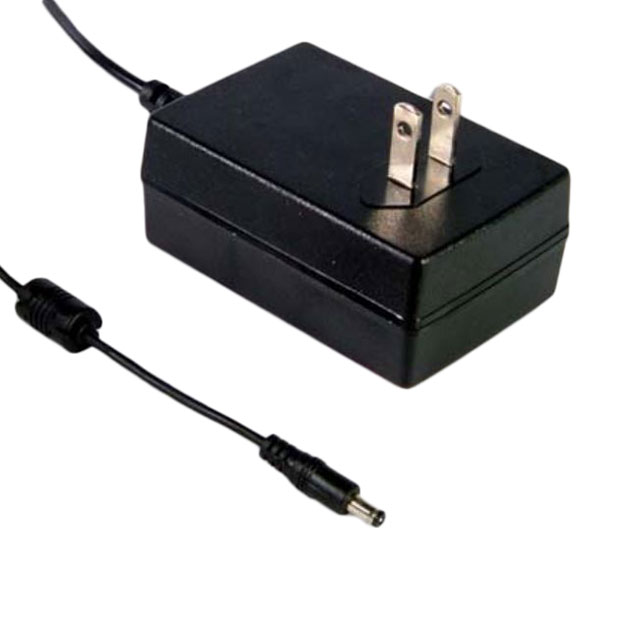

AC/DC WALL MOUNT ADAPTER 12V 36W
| Part | Applications | Input Type | Current - Output (Max) [Max] | Form | Voltage - Output | Cord Length | Cord Length | No Load Power Consumption | Region Utilized | Power (Watts) | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Input Connector | Polarization | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Efficiency | Output Connector [x] | Output Connector [diameter] | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | Fixed Blade | 3 A | Wall Mount | 12 V | 1 m | 39.4 in | 75 mW | North America | 36 W | BSMI CB cULus EAC | -30 ░C | 70 °C | NEMA 1-15P | Positive Center | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | Level VI | 11 mm | 2.1 mm 5.5 mm | Barrel Plug |
 MEAN WELL USA Inc. | ITE (Commercial) | Fixed Blade | 3 A | Wall Mount | 12 V | 1 m | 39.4 in | 75 mW | North America | 36 W | BSMI CB cULus EAC | -30 ░C | 70 °C | NEMA 1-15P | Positive Center | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | Level VI | 11 mm | 2.5 mm 5.5 mm | Barrel Plug |
